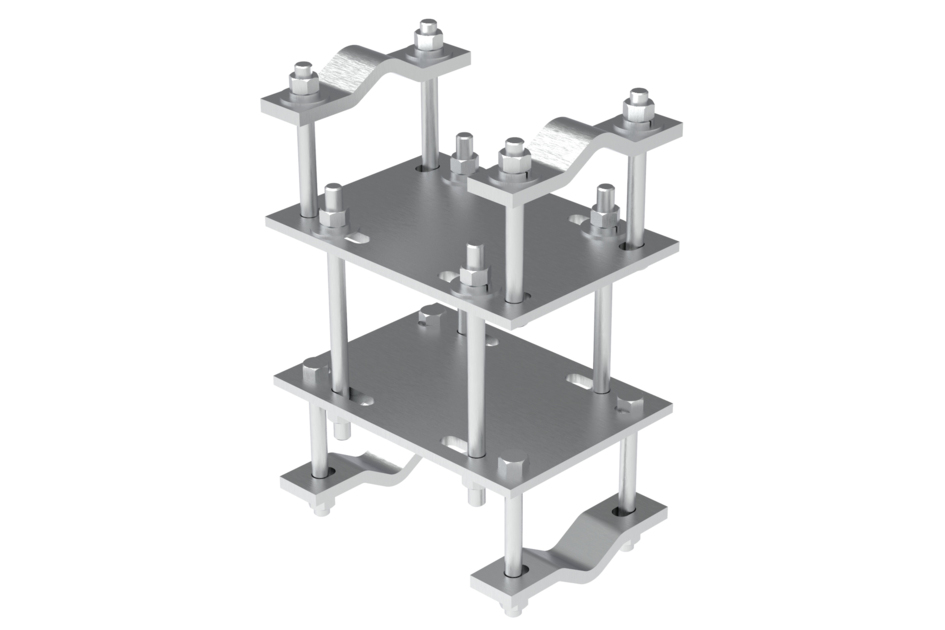

MUK-MSK6 | BACK TO BACK CROSSOVER
Dual Cross Over Plate, Mounts (2) 3-1/2” to 4-1/2” Pipes to 4” or 6” Square Tube
Specifications
Product Classification
| Product Type | Clamp plate |
General Specifications
| Mounting | Crossover plate |
Dimensions
| Mounting Diameter 2, maximum | 152.400 mm | 6 in |
| Mounting Diameter 2, minimum | 101.600 mm | 4 in |
| Mounting Diameter, maximum | 114.300 mm | 4.5 in |
| Mounting Diameter, minimum | 88.900 mm | 3.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Plates | U-bolts |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Product Type | Clamp plate |
General Specifications
| Mounting | Crossover plate |
Dimensions
| Mounting Diameter 2, maximum | 152.400 mm | 6 in |
| Mounting Diameter 2, minimum | 101.600 mm | 4 in |
| Mounting Diameter, maximum | 114.300 mm | 4.5 in |
| Mounting Diameter, minimum | 88.900 mm | 3.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Plates | U-bolts |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
