R3V6-65B-R9

18-port sector antenna, 6x 694-960, 12x 1695-2690 MHz, 65° HPBW, 9xRET

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

All Internal RET actuators are connected in "Cascaded SRET" configuration
Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios

Specifications

General Specifications

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, mid band	12
RF Connector Quantity, low band	6
RF Connector Quantity, total	18

Remote Electrical Tilt (RET) Information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	Low band (3) \| Mid band (6)
Power Consumption, active state, maximum	8 W
Power Consumption, idle state, maximum	1 W
Protocol	3GPP/AISG 2.0

Dimensions

Width	579 mm \| 22.795 in
Depth	212 mm \| 8.346 in
Length	2100 mm \| 82.677 in
Net Weight, antenna only	47.7 kg \| 105.160 lb

Array Layout

Click on image to enlarge.

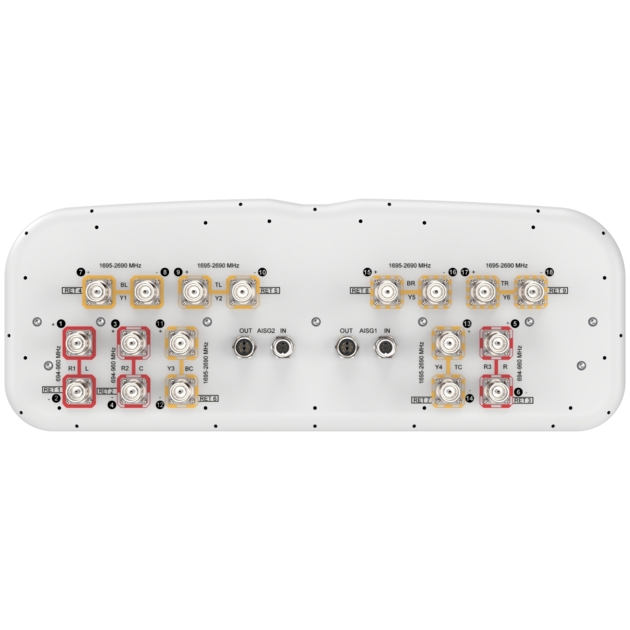

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	694 – 960 MHz \| 1695 – 2690 MHz
Polarization	±45°
Total Input Power, maximum	900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz	698–806	790–894	890–960	698–806	790–894	890–960	1695–1990	1695–1900	1920–2300	2300–2500	2490–2690	1695–1990	1920–2300	2300–2500	2490–2690
Isolation, Cross Polarization, port to port, dB								987

Electrical Specifications, BASTA

Frequency Band, MHz	698–806	790–894	890–960	698–806	790–894	890–960	1695–1990	1695–1900	1920–2300	2300–2500	2490–2690	1695–1990	1920–2300	2300–2500	2490–2690
Gain by all Beam Tilts, average, dBi	13.8	14.3	14.8	12.3	13.6	14.7	16.1		16.9	17.8	17.9	15.9	16.7	17.3	17.3
USLS, beampeak to 20° above beampeak, dB	14	15	13	12	16	16	15		15	16	16	11	12	12	13
CPR at Boresight, dB	18	18	21	16	18	22	18		18	19	21	19	21	21	22
CPR at Sector, dB	10	6	6	8	6	6	6		3	5	5	5	3	4	2

Mechanical Specifications

Wind Loading @ Velocity, frontal	576.0 N @ 150 km/h (129.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	241.0 N @ 150 km/h (54.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	919.0 N @ 150 km/h (206.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	584.0 N @ 150 km/h (131.3 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and Weights

Width, packed	681 mm \| 26.811 in
Depth, packed	368 mm \| 14.488 in
Length, packed	2239 mm \| 88.150 in
Weight, gross	62.3 kg \| 137.348 lb

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant

General Specifications

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, mid band	12
RF Connector Quantity, low band	6
RF Connector Quantity, total	18

Remote Electrical Tilt (RET) Information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	Low band (3) \| Mid band (6)
Power Consumption, active state, maximum	8 W
Power Consumption, idle state, maximum	1 W
Protocol	3GPP/AISG 2.0

Dimensions

Width	579 mm \| 22.795 in
Depth	212 mm \| 8.346 in
Length	2100 mm \| 82.677 in
Net Weight, antenna only	47.7 kg \| 105.160 lb

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	694 – 960 MHz \| 1695 – 2690 MHz
Polarization	±45°
Total Input Power, maximum	900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz	698–806	790–894	890–960	698–806	790–894	890–960	1695–1990	1695–1900	1920–2300	2300–2500	2490–2690	1695–1990	1920–2300	2300–2500	2490–2690
Isolation, Cross Polarization, port to port, dB								987

Electrical Specifications, BASTA

Frequency Band, MHz	698–806	790–894	890–960	698–806	790–894	890–960	1695–1990	1695–1900	1920–2300	2300–2500	2490–2690	1695–1990	1920–2300	2300–2500	2490–2690
Gain by all Beam Tilts, average, dBi	13.8	14.3	14.8	12.3	13.6	14.7	16.1		16.9	17.8	17.9	15.9	16.7	17.3	17.3
USLS, beampeak to 20° above beampeak, dB	14	15	13	12	16	16	15		15	16	16	11	12	12	13
CPR at Boresight, dB	18	18	21	16	18	22	18		18	19	21	19	21	21	22
CPR at Sector, dB	10	6	6	8	6	6	6		3	5	5	5	3	4	2

Mechanical Specifications

Wind Loading @ Velocity, frontal	576.0 N @ 150 km/h (129.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	241.0 N @ 150 km/h (54.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	919.0 N @ 150 km/h (206.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	584.0 N @ 150 km/h (131.3 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and Weights

Width, packed	681 mm \| 26.811 in
Depth, packed	368 mm \| 14.488 in
Length, packed	2239 mm \| 88.150 in
Weight, gross	62.3 kg \| 137.348 lb

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
