760251756 | OCP-EC-06MASCA-XX

Base Product: OCP

  • Available in:
  • EMEA

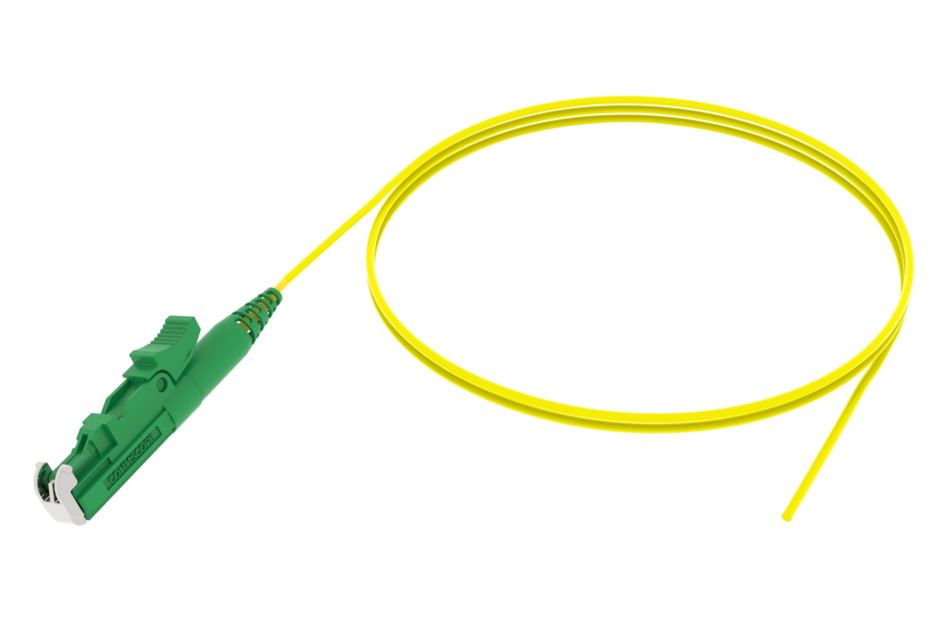

Fiber Optic Pigtail, Simplex, Singlemode, LSZH, 2.4 mm diameter, tuned, Grade B, LSH/APC to Stub, yellow, 6 m

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability EMEA
Product Type Fiber pigtail, jacketed
Product Series OCP

General Specifications

Connector A, quantity 1
Color, boot A Green
Color, connector A Green
Interface, Connector A LSH/APC
Jacket Color Yellow
Total Fibers, quantity 1

Dimensions

Cord Length 6 m | 19.685 ft
Diameter Over Jacket 2.4 mm | 0.094 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A1, TeraSPEED®
Performance Grade Superior B grade
Insertion Loss, maximum, connector A 0.25 dB
Return Loss, minimum, connector A 60 dB

Environmental Specifications

Environmental Space Low Smoke Zero Halogen (LSZH)

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
