DHK-158-2-P

Base Product: DHK-SERIES-HANGER-BLOCKS

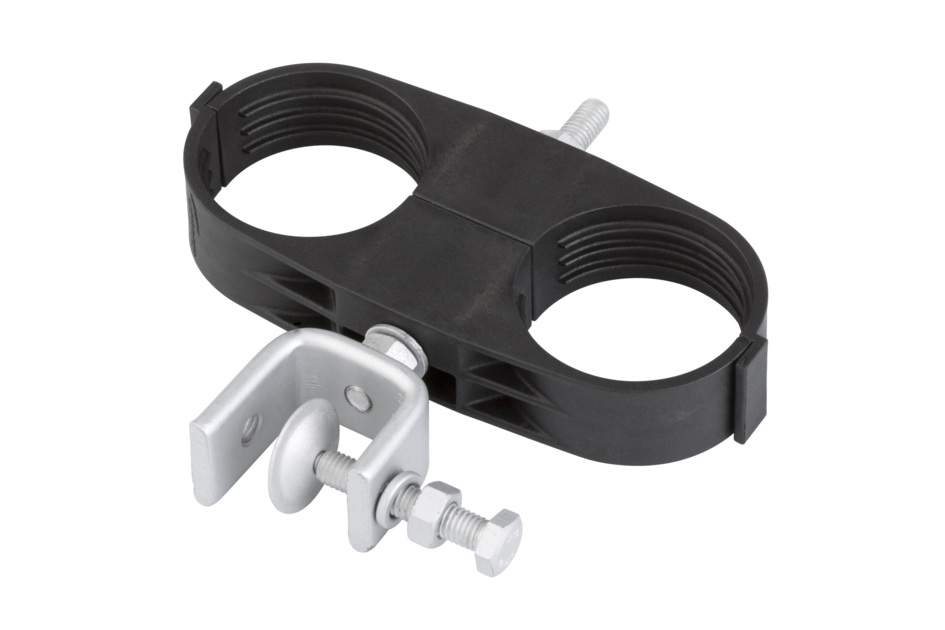

Double Hanger Kit for 1-5/8 in coaxial cable, single stack; includes hardware and angle adapter

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Hanger kit
Product Brand ValuSite™
Ordering Note CommScope® non-standard product

General Specifications

Cables per Hanger 2
Color Black
Hanger Type Composite clamp
Mounting M8 hardware

Dimensions

Maximum Stack Height 1
Height 79 mm | 3.110 in
Width 25.9 mm | 1.020 in
Length 144.5 mm | 5.689 in
Compatible Cable Diameter Range 49–51.1 mm
Compatible Diameter, maximum 51.1 mm | 2.012 in
Compatible Diameter, minimum 49 mm | 1.929 in
Nominal Size 1-5/8 in

Electrical Specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material Specifications

Material Type Engineered plastic | Stainless steel 304

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥500 hours in salt spray chamber
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 38.1 cm | 15 in
Width, packed 38.1 cm | 15 in
Length, packed 7.6 cm | 2.992 in
Included Angle adapter | Hardware
Packaging quantity 1
Weight, gross 0.57 kg | 1.257 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
