RP-A2114

ONECELL® Ruggedized Radio Point 2000-Americas 1 Radio, 3 Bands, External 4.3-10 DIN antenna ports

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

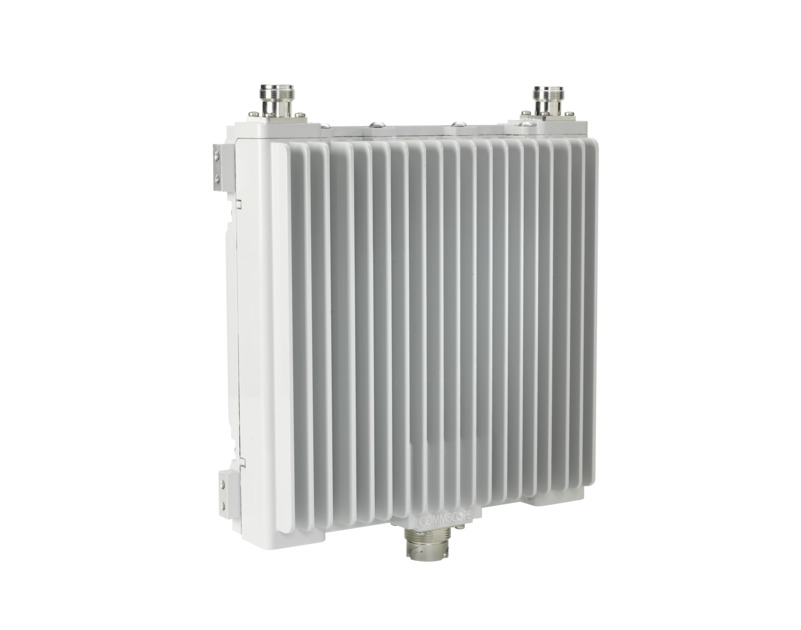

ONECELL RP2100-angle

Features and Benefits

Pooled baseband processing with centralized scheduler
Smart Reuse for multi-sector throughput without border handovers or interference
Single PCI across multiple Radio Points
Joint Transmission and Reception
No borders or handovers within controller

Specifications

Product Classification

Product Type	Radio point
Product Brand	ONECELL®

Technology	LTE MIMO
Application	LTE delivery for public venues and large enterprises
Antenna Interface	4.3-10 coaxial connector
Antenna Location	External
Antenna Quantity	2
Boot and Storage Security	Secure Boot, Secure Storage (TrE)
Controller to RP Management Security	HTTPS
Fronthaul and OTA Security	PDCP ciphering
Fronthaul Interface	IP Ethernet LAN
General Standard	3GPP Release 10 Local Area Base Station
Health Standard	FCC Part 24E \| FCC Part 27
Modulation Type	DL: QPSK, 16QAM, 64QAM \| UL: QPSK, 16QAM
Physical Interface	RJ45/GigE
Radio Standard	FCC Part 24E \| FCC Part 27
Timing and Synchronization	IEEE 1588 v2 (from controller)
Transmit Power	2 x 125 mW

Input Voltage Range	PoE+
Electrical Safety Standard	CAN/CSA 22.2 no. 950 \| IEC 60950-1:2005 (2nd Edition) +A1:2009 \| UL 60950-1 (2nd Edition 2011)
Electromagnetic Compatibility (EMC)	US FCC Part 24E \| US FCC Part 27
Frequency Band	700 MHz \| 1900 MHz \| 2100 MHz
License Band	10 \| 12 \| 13 \| 17 \| 2 \| 25 \| 4
Power Consumption	25 W

Transportation Vibration Standard

ISTA-3A

Operating Temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Ingress Protection Test Method	IEC 60529:2001, IP66

Weight, net

3.6 kg | 7.937 lb
