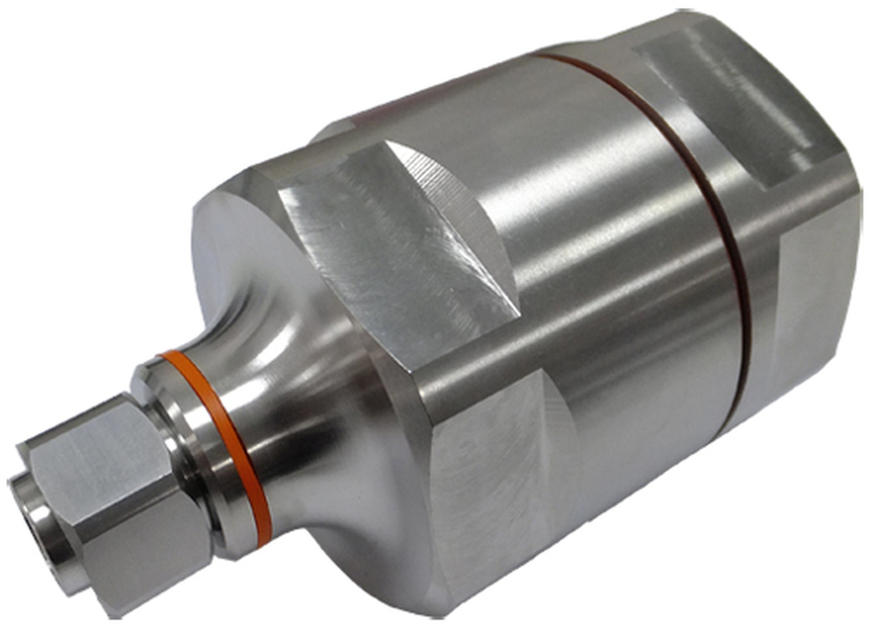

R7PHM
Type 4.3-10 Male Low PIM for 1-5/8 in RCT RADIAX® Radiating cable
Specifications
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
| Product Brand | RADIAX® |
General Specifications
| Body Style | Straight |
| Cable Family | RCT7 |
| Inner Contact Attachment Method | Thread-in stub |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 105.92 mm | 4.170 in |
| Diameter | 62.74 mm | 2.470 in |
| Nominal Size | 1-5/8 in |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications
| 3rd Order IMD at Frequency | -155 -dBc @ 1800 MHz | -155 -dBc @ 700 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 0.5 kW @ 2,000 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 2700 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
| Peak Power, maximum | 15 kW |
| RF Operating Voltage, maximum (vrms) | 884 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 45–1000 MHz | 1.022 | 39.27 |
| 1010–2000 MHz | 1.020 | 40.20 |
| 2010–2400 MHz | 1.029 | 36.90 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 889.64 N | 200.000 lbf |
| Connector Retention Torque | 4.52 N-m | 39.997 in lb |
| Coupling Nut Proof Torque | 10 N-m | 88.499 in lb |
| Coupling Nut Retention Force | 449.98 N | 101.160 lbf |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 874.99 g | 1.929 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Wireless and radiating connector |
| Product Brand | RADIAX® |
General Specifications
| Body Style | Straight |
| Cable Family | RCT7 |
| Inner Contact Attachment Method | Thread-in stub |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 105.92 mm | 4.170 in |
| Diameter | 62.74 mm | 2.470 in |
| Nominal Size | 1-5/8 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -155 -dBc @ 1800 MHz | -155 -dBc @ 700 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 0.5 kW @ 2,000 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 2700 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
| Peak Power, maximum | 15 kW |
| RF Operating Voltage, maximum (vrms) | 884 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 45–1000 MHz | 1.022 | 39.27 |
| 1010–2000 MHz | 1.020 | 40.20 |
| 2010–2400 MHz | 1.029 | 36.90 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 889.64 N | 200.000 lbf |
| Connector Retention Torque | 4.52 N-m | 39.997 in lb |
| Coupling Nut Proof Torque | 10 N-m | 88.499 in lb |
| Coupling Nut Retention Force | 449.98 N | 101.160 lbf |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 874.99 g | 1.929 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
