MDC
Base Product
- Available in:
- Asia
- Latin America
- North America

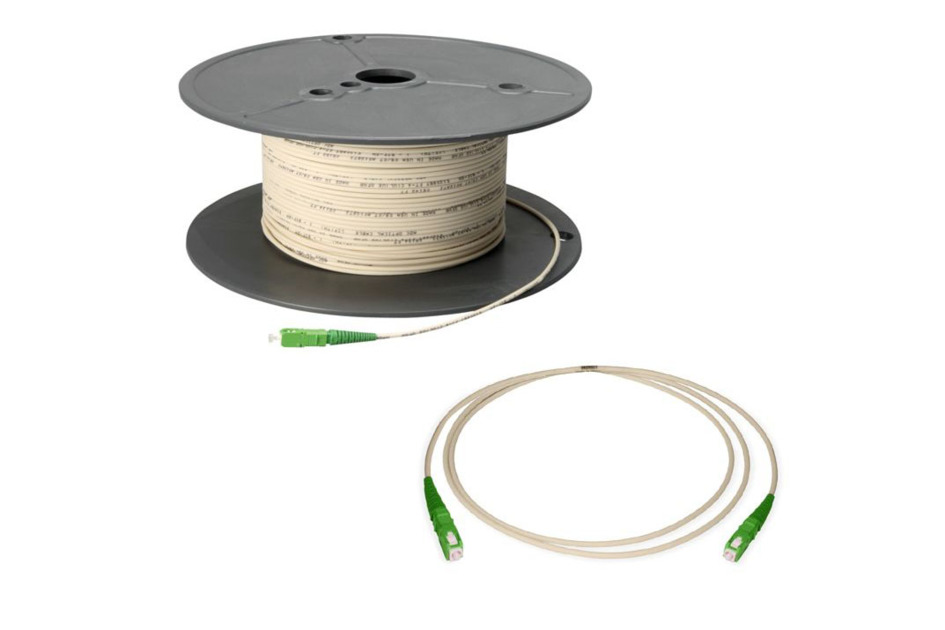

RealFlex® 3 Fiber Optic Drop Cable Assembly for indoor/outdoor applications
Features and Benefits
- Allow for a fiber bend radius as small as 7.5 millimeters without changing attenuation characteristics, and improve the insertion loss (IL) performance for 90-degree bend locations
- Available in outdoor and indoor configurations, with both riser and plenum cable types for use in residential, business, or MDU (multipledwelling unit) structures
- Cables can also be stapled, (using CommScope-approved staplers and staples), allowing fast and easy securing of cables to most surfaces
- Rugged 3-millimeter cable construction provides the flexibility and durability to withstand the most demanding applications
Specifications
Product Classification
| Regional Availability | Asia | Latin America | North America |
| Product Type | Fiber drop cable assembly |
| Product Brand | RealFlex® |
| Product Series | MDC |
General Specifications
| Cable Type | Stapleable - Round |
| Jacket Color | Ivory |
Ordering Tree
| Click on image to enlarge. |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2/B2 |
Environmental Specifications
| Installation temperature | -20 °C to -60 °C (-4 °F to -76 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Jacket UV Resistance | UV stabilized |
Packaging and Weights
| Cable weight | 7.9 kg/km | 5.309 lb/kft |
Product Classification
| Regional Availability | Asia | Latin America | North America |
| Product Type | Fiber drop cable assembly |
| Product Brand | RealFlex® |
| Product Series | MDC |
General Specifications
| Cable Type | Stapleable - Round |
| Jacket Color | Ivory |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2/B2 |
Environmental Specifications
| Installation temperature | -20 °C to -60 °C (-4 °F to -76 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Jacket UV Resistance | UV stabilized |
Packaging and Weights
| Cable weight | 7.9 kg/km | 5.309 lb/kft |
| Click on image to enlarge. |
