PG-CS23

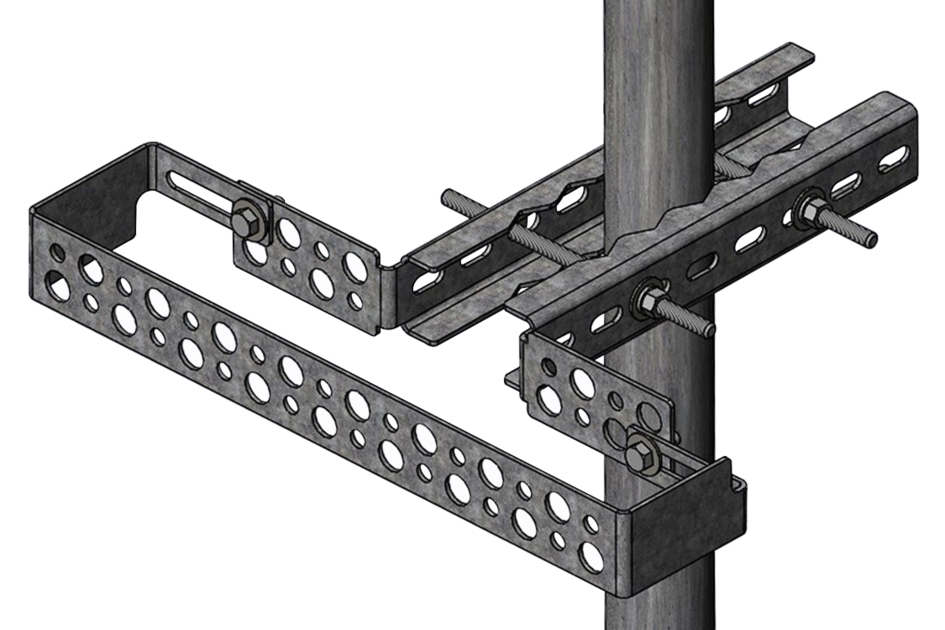

PIM-Guard Antenna and RRU Cable Support Bracket with 23 ports for stackable hangers (up to 3 per port). Install with torque wrench set at 10 to 15 ft-lb to meet carrier PIM requirements. For patents, see www.cs-pat.com

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

Product Type	Support bracket
Product Brand	PIM-Guard

General Specifications

Cable Runs, quantity	23
Hole, quantity	23
Mounting	Pipe, 60.3–114.3 mm (2-3/8 in to 4-1/2 in) OD

Dimensions

Height	55.88 mm \| 2.2 in
Width	457.2 mm \| 18 in
Length	419.1 mm \| 16.5 in
Mounting Diameter, maximum	60.96 mm \| 2.4 in
Mounting Diameter, minimum	114.3 mm \| 4.5 in
Hole Size	3/4 in \| 7/16 in

Material Specifications

Material Type

Hot dip galvanized steel

Packaging and Weights

Packaging quantity	1
Weight, net	5.1 kg \| 11.244 lb

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
