2-599691-4 | C-024-CA-8W-M24BK/40G/GY

Base Product: C-CA

  • Available in:
  • Australia/New Zealand
  • EMEA

Fiber indoor/outdoor Cable, Armored LSZH, G.652.D and G.657.A1, 24 fiber, loose tube, gel-filled

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Australia/New Zealand | EMEA
Portfolio CommScope®
Product Type Fiber indoor/outdoor cable
Product Series C-CA

General Specifications

Armor Type Corrugated steel
Cable Type Loose tube
Subunit Type Gel-filled
Jacket Color Black
Jacket Marking Meters
Jacket Marking Method Inkjet
Jacket Marking Text COMMSCOPE GB SYSTEM F.O. CABLE X-599691-4 CSA GEL LOOSE TUBE 24X9/125 OS2 ULSZH (Serial NUMBER) (METRE MARK)
Fibers per Subunit, quantity 24
Total Fiber Count 24

Dimensions

Buffer Tube/Subunit Diameter 4 mm | 0.157 in
Diameter Over Jacket 10.5 mm | 0.413 in

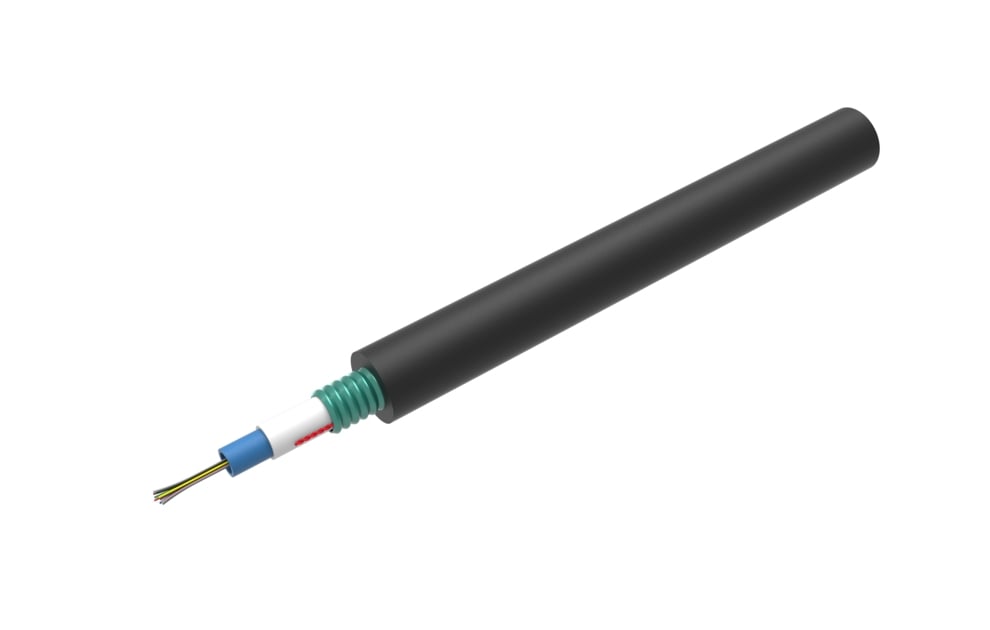

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material Low Smoke Zero Halogen (LSZH)

Mechanical Specifications

Minimum Bend Radius, loaded 210 mm | 8.268 in
Minimum Bend Radius, unloaded 160 mm | 6.299 in
Tensile Load, long term, maximum 625 N | 140.506 lbf
Tensile Load, short term, maximum 1200 N | 269.771 lbf
Cable Crush Resistance, maximum 30 N/mm | 171.304 lb/in
Compression Test Method IEC 60794-1-2 E3
Impact 5 N-m | 44.254 in lb
Impact Test Method IEC 60794-1-21 E4
Twist 5 cycles
Twist Test Method IEC 60794-1-21 E7

Optical Specifications

Fiber Type G.652.D and G.657.A1

Optical Specifications, Wavelength Specific

Attenuation, maximum 0.22 dB/km @ 1,550 nm | 0.36 dB/km @ 1,310 nm

Environmental Specifications

Installation temperature -20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature -20 °C to +75 °C (-4 °F to +167 °F)
Cable Qualification Standards IEC 60794-1-2
Environmental Space Buried | Ducted | Indoor/Outdoor | Outdoor
Flame Test Method IEC 60332-1 | IEC 60754-1 | IEC 60754-2 | IEC 61034-2
Water Penetration 24 h
Water Penetration Test Method IEC 60794-1 F5

Environmental Test Specifications

Temperature Cycle -20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method IEC 60794-1-2 F1

Packaging and Weights

Cable weight 151 kg/km | 101.467 lb/kft

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
