DPCPWR-NODE-1500

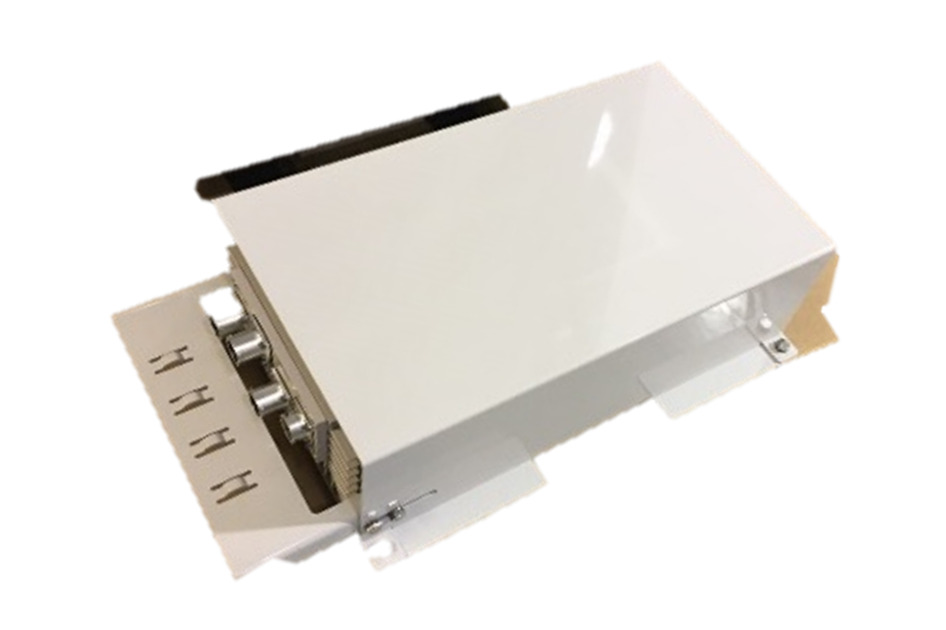

PowerShift Metro® 1500W Remote Node, 380V to 48V converter, Small Cell Pole-Mounted

Specifications
Finish making your selections or clear them to view relevant specifications.
View Download
Find a Partner
Support
Features and Benefits
  • Reduced capital/operating expenditures
  • Power Input/Output Connect – Plug and Play
  • LED Status Indicator- ON, Initializing, Fault and OFF
  • Built in twist lock Power Input Switch

Product Classification

Product Type Module
Product Brand PowerShift Metro®

Dimensions

Height 330.200 mm | 13 in
Width 219.964 mm | 8.66 in
Depth 101.600 mm | 4 in

Electrical Specifications

Input Current, nominal 7 A
Input Voltage Range ±190 Vdc (± 125 Vdc to ± 200 Vdc)
Output Current Range 0-33.3 A
Output Current, max 26A per port
Output Current, nominal 6.75 A
Output Power Connections, quantity 3
Output Voltage Range -46 to -57 Vdc
Output Voltage, nominal -48 Vdc
Electrical Safety Standard CE | IEC/EN 62368-1 | UL 62368
Electromagnetic Compatibility/Interference (EMC/EMI) GR1089 Class A
Power Efficiency 95 %
Total Output Power 1500 W

Environmental Specifications

Operating Temperature -40 °C to +46 °C (-40 °F to +115 °F)
Standards Compliance CE | EN 50581 | EN 62368-1 (LVD - Safety) | GR-1089-CORE | GR-487-CORE | UL/cUL 62368

Packaging and Weights

Packaging quantity 1
Weight, net 7.711 kg | 17 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
