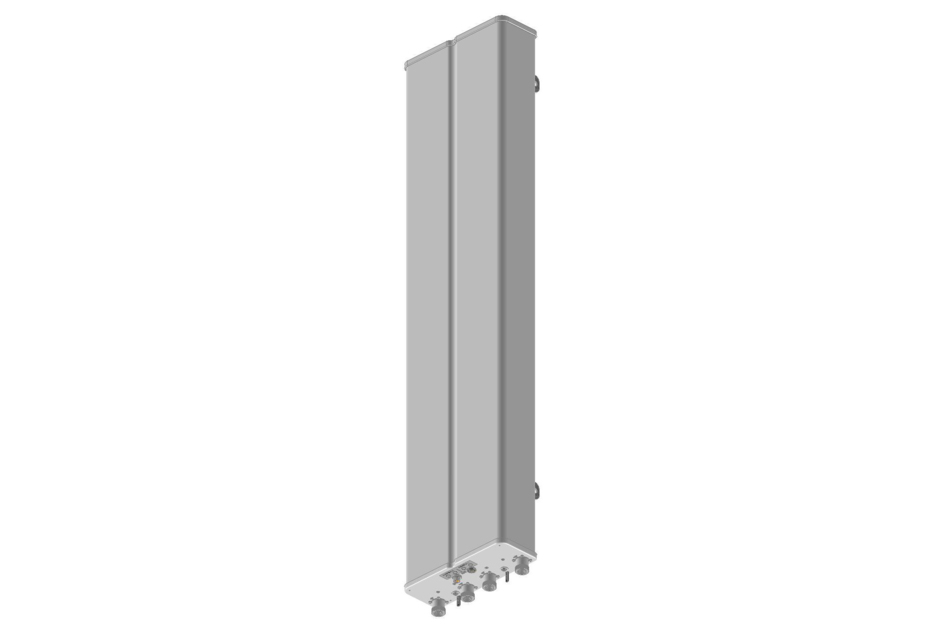

VVPX310R-V5

4-port sector antenna, 4x 1710–2690 MHz, 65° HPBW, 2x RET with manual override

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt with manual override on all arrays

General Specifications

Antenna Type Sector
Band Single band
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 4

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (2)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 290 mm | 11.417 in
Depth 103 mm | 4.055 in
Length 1328 mm | 52.283 in
Net Weight, without mounting kit 12.5 kg | 27.558 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2690 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 1710–1920 1920–2180 2300–2690
Gain, dBi 17.0 17.7 18.4
Beamwidth, Horizontal, degrees 68 67 63
Beamwidth, Vertical, degrees 8.1 7.2 5.9
Beam Tilt, degrees 0–10 0–10 0–10
USLS (First Lobe), dB 19 19 18
Front-to-Back Ratio at 180°, dB 29 30 33
CPR at Boresight, dB 18 18 18
CPR at Sector, dB 13 10 9
Isolation, Cross Polarization, dB 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150
Input Power per Port, maximum, watts 250 250 250

Mechanical Specifications

Wind Loading @ Velocity, maximum 560.0 N @ 160 km/h (125.9 lbf @ 160 km/h)
Wind Speed, maximum 200 km/h (124 mph)

Packaging and Weights

Width, packed 360 mm | 14.173 in
Depth, packed 216 mm | 8.504 in
Length, packed 1510 mm | 59.449 in

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

General Specifications

Antenna Type Sector
Band Single band
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 4

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (2)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 290 mm | 11.417 in
Depth 103 mm | 4.055 in
Length 1328 mm | 52.283 in
Net Weight, without mounting kit 12.5 kg | 27.558 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2690 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 1710–1920 1920–2180 2300–2690
Gain, dBi 17.0 17.7 18.4
Beamwidth, Horizontal, degrees 68 67 63
Beamwidth, Vertical, degrees 8.1 7.2 5.9
Beam Tilt, degrees 0–10 0–10 0–10
USLS (First Lobe), dB 19 19 18
Front-to-Back Ratio at 180°, dB 29 30 33
CPR at Boresight, dB 18 18 18
CPR at Sector, dB 13 10 9
Isolation, Cross Polarization, dB 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150
Input Power per Port, maximum, watts 250 250 250

Mechanical Specifications

Wind Loading @ Velocity, maximum 560.0 N @ 160 km/h (125.9 lbf @ 160 km/h)
Wind Speed, maximum 200 km/h (124 mph)

Packaging and Weights

Width, packed 360 mm | 14.173 in
Depth, packed 216 mm | 8.504 in
Length, packed 1510 mm | 59.449 in

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
