760256444 | TENIO-B6-144-ROUND

Base Product: TENIO

Available in:
EMEA
Latin America

TENIO™ B6 144f Distribution closure round cable kit with test valve

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Assembled TENIO closure designed for 144 fibre distribution closure kit for round cable with various diameters.

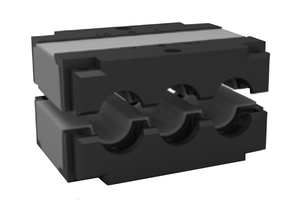

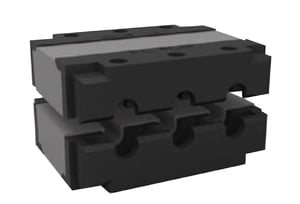

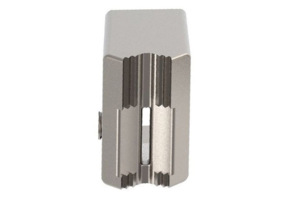

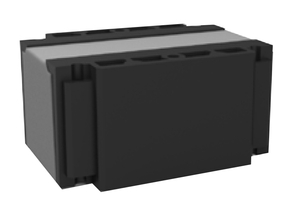

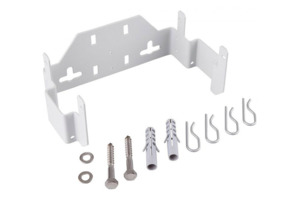

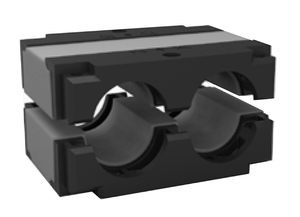

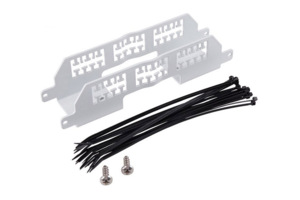

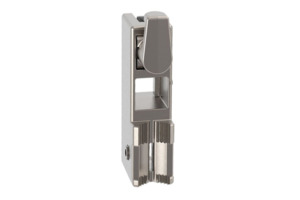

The kit contains a range of sealkits from 3mm to 12mm diameters and cable termination units to complete installation of feeder cable (loop-through) and variousdistributions cables. It also has a MOBRA bracket suitable for use with PIA chambers. Fibre trays and seal kits are pre-assembled intothe closure in the factory to reduce engineering time in the field. This kit provides enough accessories to complete most jobs of this size and nature.

Single-ended, toolless closure for splicing feeder, access and drop cables
Features modular building blocks that fastens installation and reduces inventory

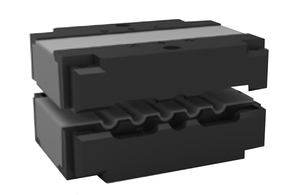

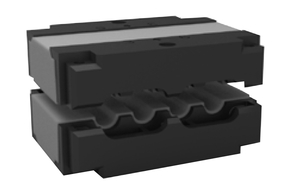

Gel cable sealing technology allows easy adding or removing of a wide size range of cables
Compatible with most common cable types: e.g. loose tube, central core, ribbon fiber
Compatible with CommScope's CWDM modules and optical splitter trays

Specifications

Product Classification

Regional Availability	EMEA \| Latin America
Product Type	Single-ended, rectangular fiber closure
Product Brand	TENIO™
Product Series	TENIO

General Specifications

Cable Entry Drop Port Style	Gel block
Cable Entry Main Port Style	Gel block
Cable Ports Quantity, total	6 multi-out ports (30 cables)
Cable Sealing Type	Compressed gel
Closure Sealing Type	Side latch
Closure Style	Single-ended
Color	Black
Flash Test Valve	Pre-installed
Mounting	Wall
Network Area Type	Distribution \| Drop

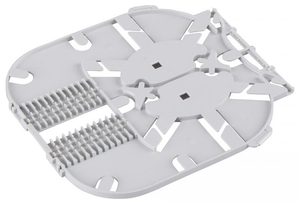

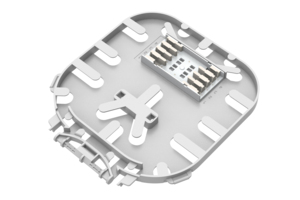

Splice Tray Included, quantity	12
Splice Tray Type Included	12-fiber, single element
Splices per Tray, quantity	12
Splicing Capacity, Single Fusion, maximum	144
Splicing Type, Supported	Single fusion

Dimensions

Height	230 mm \| 9.055 in
Width	134 mm \| 5.276 in
Length	389 mm \| 15.315 in
Main Cable Diameter, maximum	16 mm \| 0.63 in

Material Specifications

Material Type

Impact-resistant polymer

Environmental Specifications

Environmental Space	Below ground \| Buried
Qualification Standards	IEC 61300, 2 m waterhead
Water Resistance	Flash test valve at 5 psi (40 kPa)

Packaging and Weights

Packaging quantity	1
Packaging Type	Box \| Carton
Weight, net	1 kg \| 2.205 lb

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
UK-ROHS	Compliant/Exempted
