DFJ-2M5-NBS

Base Product: DFJ

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

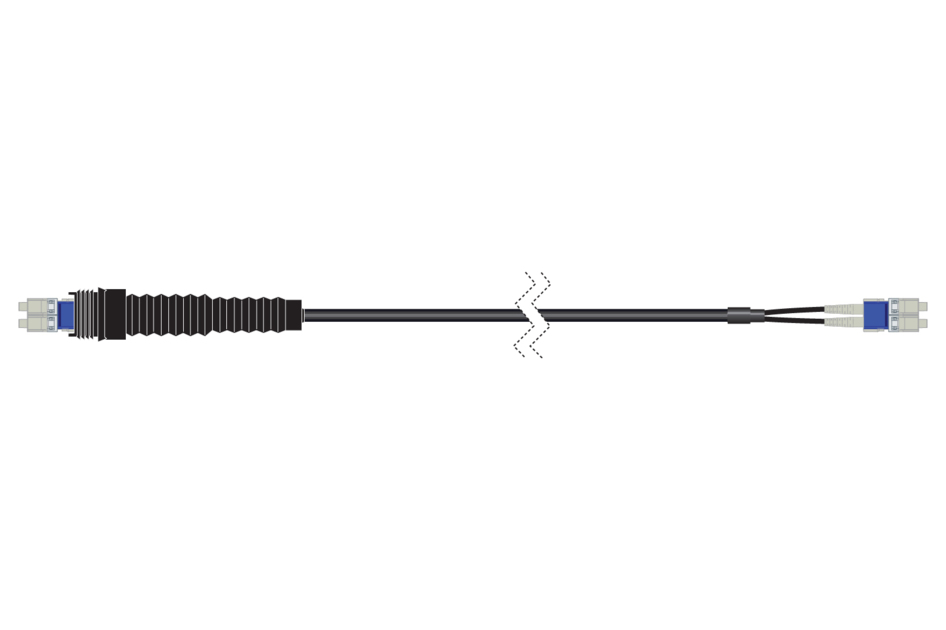

HELIAX® Discrete, 2 multimode fiber, 5 mm LSZH cable. End 1: DLC with weatherproofing boot. End 2: DLC with uniboot

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of DFJ-2M5-NBS by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Cable Assembly Length

Part Number	Cable Assembly Length
No configured items found.

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Wireless Fiber Cable Assemblies
Product Brand	HELIAX®
Product Series	DFJ
Ordering Note	CommScope® non-standard product

General Specifications

Construction Type	Discrete fiber tail
Interface, Connector A	DLC
Interface Feature, connector A	Nokia boot
Interface Body Style, connector A	Straight
Interface, Connector B	DLC
Interface Feature, connector B	Uniboot
Interface Body Style, connector B	Straight
Jacket Color	Black
Total Fibers, quantity	2

Dimensions

Cable Assembly Length Range (m)	3 – 50
Diameter Over Jacket	5 mm \| 0.197 in

Ordering Tree

Click on image to enlarge.

Material Specifications

Jacket Material

Low Smoke Zero Halogen (LSZH)

Optical Specifications

Fiber Mode	Multimode
Fiber Type	OM2, bend insensitive
Insertion Loss, typical note	Insertion loss is measured at 850 nm
Insertion Loss, typical	0.5 dB

Environmental Specifications

Operating Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Environmental Space	Outdoor

Packaging and Weights

Cable weight

25 kg/km | 16.799 lb/kft
