MHD

Base Product

Available in:
Asia
Latin America
North America

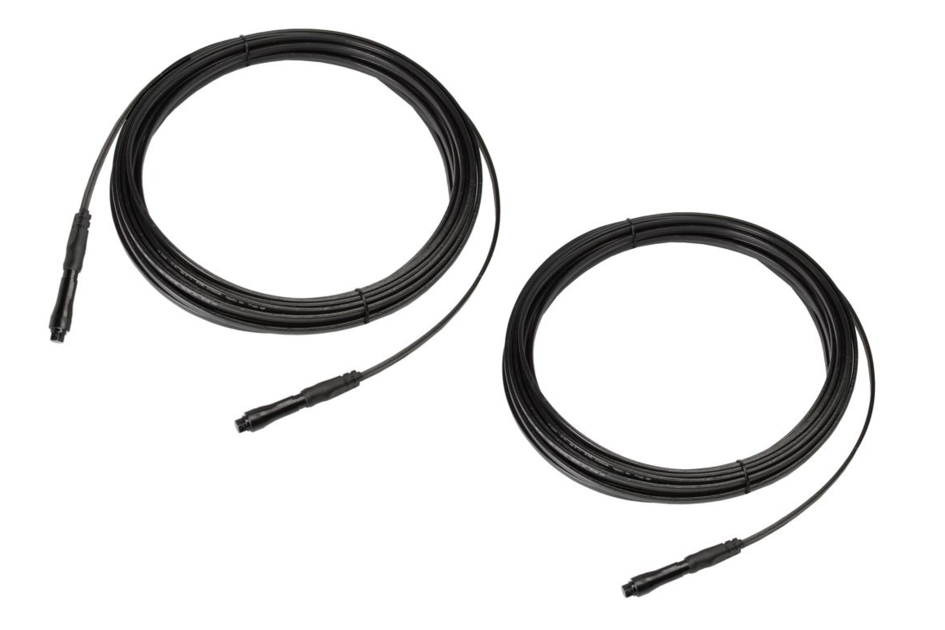

Fiber Optic Feeder Cable Assembly with HMFOC connectors

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of MHD by selecting options

Features and Benefits

Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
Hardened drop cables incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Hardened drop cables simplify installation and maintenance by reducing splicing requirements in the distribution portion of the network
Incorporates 12 optical fibers in a single hardened design, terminated with a factory-sealed hardened multifiber fiber-optic connector (HMFOC) at one or both sides
Assemblies have a 12-fiber MT (mobile terminated) ferrule enclosed in a water-sealed connector housing for outside plant applications

Specifications

Product classification

Regional Availability	Asia \| Latin America \| North America
Product Type	Fiber drop cable assembly
Product Series	MHD

General Specifications

Jacket Color

Black

Ordering Tree

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded	86 mm \| 3.386 in
Minimum Bend Radius, unloaded	81 mm \| 3.189 in
Tensile Load, long term, maximum	400 N \| 89.924 lbf
Tensile Load, short term, maximum	1334 N \| 299.895 lbf

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2, TeraSPEED®

Environmental Specifications

Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Operating Temperature Note	Specification applicable to non-terminated bulk fiber cable
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space	Outdoor, buried
Jacket UV Resistance	UV stabilized

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ROHS	Compliant
UK-ROHS	Compliant
