RRYYHHTTS4-65A-R7
24-port sector antenna, 4x 694–960, 4x 1427–1518, 4x 1695-2180, 4x 2490-2690 65° HPBW and 8x 3300-3800 MHz, 7x RET
Features and Benefits
- Integrated with a calibration board
- Optimized for Software Defined Split 6 Sector applications
- 2 columns for 694-960 MHz and 2 columns for 1427-1518 / 1695-2180 / 2490-2690 MHz and 4 columns for 3300-3800 MHz
- Seven internal RETs control the antenna arrays
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Calibration Connector Interface | 4.3-10 Female |
| Calibration Connector Quantity | 1 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 20 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 24 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (5) | Low band (2) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 1499 mm | 59.016 in |
| Net Weight, without mounting kit | 39.2 kg | 86.421 lb |
| TDD Column Spacing | 42 mm | 1.654 in |
Array Layout
| Click on image to enlarge. |

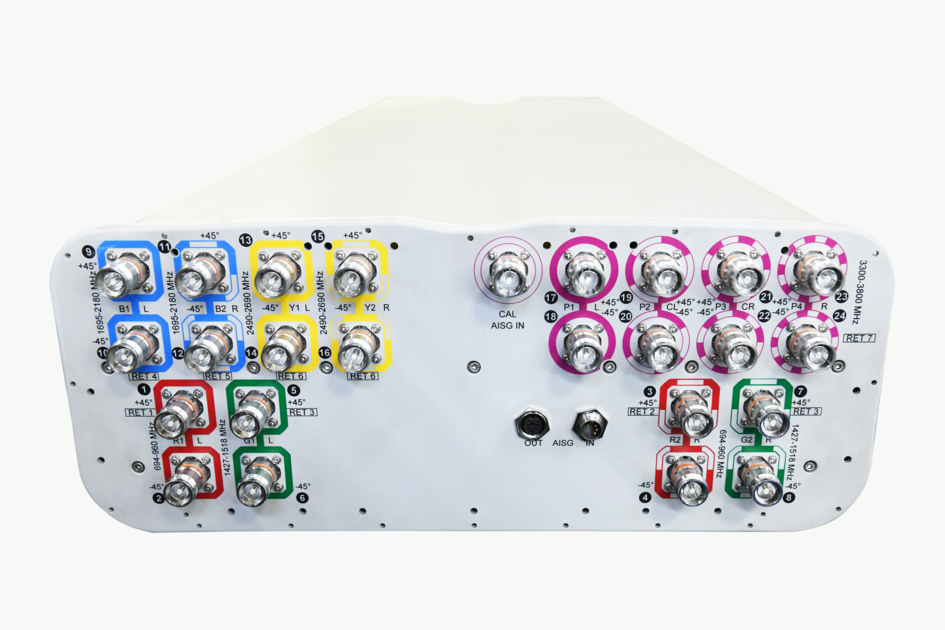

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 1518 MHz | 1695 – 2180 MHz | 2496 – 2690 MHz | 3300 – 3800 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical Specifications
| R1-R2 | R1-R2 | R1-R2 | G1-G2 | B1-B2 | Y1-Y2 | P1 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2490–2690 | 3300–3800 |
| Gain, dBi | 13.4 | 13.5 | 13.8 | 14.9 | 15.9 | 16.8 | 15.9 |
| Beamwidth, Horizontal, degrees | 60 | 60 | 60 | 59 | 68 | 57 | 91 |
| Beamwidth, Vertical, degrees | 17.2 | 15.8 | 15.0 | 8.1 | 6.5 | 4.9 | 6.5 |
| Beam Tilt, degrees | 2–16 | 2–16 | 2–16 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 21 | 17 | 17 | 17 | 17 | 16 | 16 |
| Front-to-Back Ratio at 180°, dB | 30 | 29 | 29 | 31 | 29 | 30 | 28 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | ||||||
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ||||||
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | ||||||
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 9 | ||||||
| Isolation, Cross Polarization, dB | 26 | 26 | 26 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 26 | 26 | 26 | 28 | 28 | 28 | 20 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -145 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 150 | 75 |
Electrical Specifications, Broadcast 65
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2490–2690 | 3300–3800 |
| Gain, dBi | 16.5 | ||||||
| Beamwidth, Horizontal, degrees | 63 | ||||||
| Beamwidth, Vertical, degrees | 6.6 | ||||||
| USLS (First Lobe), dB | 17 |
Electrical Specifications, Service Beam
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2490–2690 | 3300–3800 |
| Steered 0° Gain, dBi | 20.6 | ||||||
| Steered 0° Beamwidth, Horizontal, degrees | 24 | ||||||
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 27 | ||||||
| Steered 0° Horizontal Sidelobe, dB | 15 | ||||||
| Steered 30° Gain, dBi | 19.7 | ||||||
| Steered 30° Beamwidth, Horizontal, degrees | 27 | ||||||
| Steered 30° Front-to-Back Total Power at 180° ± 30°, dB | 26 |
Electrical Specifications, Soft Split
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2490–2690 | 3300–3800 |
| Gain, dBi | 19.6 | ||||||
| Beamwidth, Horizontal, degrees | 32 | ||||||
| CPR at Beampeak, dB | 16 | ||||||
| Front-to-Back Total Power at 180° ± 30°, dB | 26 | ||||||
| Horizontal Sidelobe, dB | 19 |
Mechanical Specifications
| Mechanical Tilt Range | 0°–15° |
| Wind Loading @ Velocity, frontal | 549.0 N @ 150 km/h (123.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 183.0 N @ 150 km/h (41.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 712.0 N @ 150 km/h (160.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 452.0 N @ 150 km/h (101.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 608 mm | 23.937 in |
| Depth, packed | 352 mm | 13.858 in |
| Length, packed | 1682 mm | 66.221 in |
| Weight, gross | 50.6 kg | 111.554 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Calibration Connector Interface | 4.3-10 Female |
| Calibration Connector Quantity | 1 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 20 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 24 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (5) | Low band (2) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 1499 mm | 59.016 in |
| Net Weight, without mounting kit | 39.2 kg | 86.421 lb |
| TDD Column Spacing | 42 mm | 1.654 in |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 1518 MHz | 1695 – 2180 MHz | 2496 – 2690 MHz | 3300 – 3800 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical Specifications
| R1-R2 | R1-R2 | R1-R2 | G1-G2 | B1-B2 | Y1-Y2 | P1 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2490–2690 | 3300–3800 |
| Gain, dBi | 13.4 | 13.5 | 13.8 | 14.9 | 15.9 | 16.8 | 15.9 |
| Beamwidth, Horizontal, degrees | 60 | 60 | 60 | 59 | 68 | 57 | 91 |
| Beamwidth, Vertical, degrees | 17.2 | 15.8 | 15.0 | 8.1 | 6.5 | 4.9 | 6.5 |
| Beam Tilt, degrees | 2–16 | 2–16 | 2–16 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 21 | 17 | 17 | 17 | 17 | 16 | 16 |
| Front-to-Back Ratio at 180°, dB | 30 | 29 | 29 | 31 | 29 | 30 | 28 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | ||||||
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ||||||
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | ||||||
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 9 | ||||||
| Isolation, Cross Polarization, dB | 26 | 26 | 26 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 26 | 26 | 26 | 28 | 28 | 28 | 20 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -145 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 150 | 75 |
Electrical Specifications, Broadcast 65
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2490–2690 | 3300–3800 |
| Gain, dBi | 16.5 | ||||||
| Beamwidth, Horizontal, degrees | 63 | ||||||
| Beamwidth, Vertical, degrees | 6.6 | ||||||
| USLS (First Lobe), dB | 17 |
Electrical Specifications, Service Beam
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2490–2690 | 3300–3800 |
| Steered 0° Gain, dBi | 20.6 | ||||||
| Steered 0° Beamwidth, Horizontal, degrees | 24 | ||||||
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 27 | ||||||
| Steered 0° Horizontal Sidelobe, dB | 15 | ||||||
| Steered 30° Gain, dBi | 19.7 | ||||||
| Steered 30° Beamwidth, Horizontal, degrees | 27 | ||||||
| Steered 30° Front-to-Back Total Power at 180° ± 30°, dB | 26 |
Electrical Specifications, Soft Split
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2490–2690 | 3300–3800 |
| Gain, dBi | 19.6 | ||||||
| Beamwidth, Horizontal, degrees | 32 | ||||||
| CPR at Beampeak, dB | 16 | ||||||
| Front-to-Back Total Power at 180° ± 30°, dB | 26 | ||||||
| Horizontal Sidelobe, dB | 19 |
Mechanical Specifications
| Mechanical Tilt Range | 0°–15° |
| Wind Loading @ Velocity, frontal | 549.0 N @ 150 km/h (123.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 183.0 N @ 150 km/h (41.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 712.0 N @ 150 km/h (160.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 452.0 N @ 150 km/h (101.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 608 mm | 23.937 in |
| Depth, packed | 352 mm | 13.858 in |
| Length, packed | 1682 mm | 66.221 in |
| Weight, gross | 50.6 kg | 111.554 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
