This product was discontinued on: March 31, 2023

For other alternatives, please contact us for more information.

1 Replacement products available
  • 2HH-38A-R4-V2
    8-port multibeam antenna, 8x 1695–2200 MHz, 4x 38° HPBW, 4x RET

2HH-33A-R4

8-port multibeam antenna, 8x 1695–2400 MHz, 4x 38° HPBW, 4x RET with retractable tilt rods

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Enhances network capacity through six sectors site application with only three antenna faces
  • Maximizes frequency spectrum utilization to increase Average Revenue Per User (ARPU)
  • Reduces antenna count to minimize Cap-Ex and Op-Ex costs
  • High gain with excellent sector edge roll-off and azimuth sidelobe suppression
  • Each antenna downtilt can be independently adjusted for greater flexibility in network optimization
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios

General Specifications

Antenna Type Multibeam
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (4)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 1350 mm | 53.15 in
Net Weight, without mounting kit 30.8 kg | 67.902 lb

Array Layout

Click on image to enlarge.

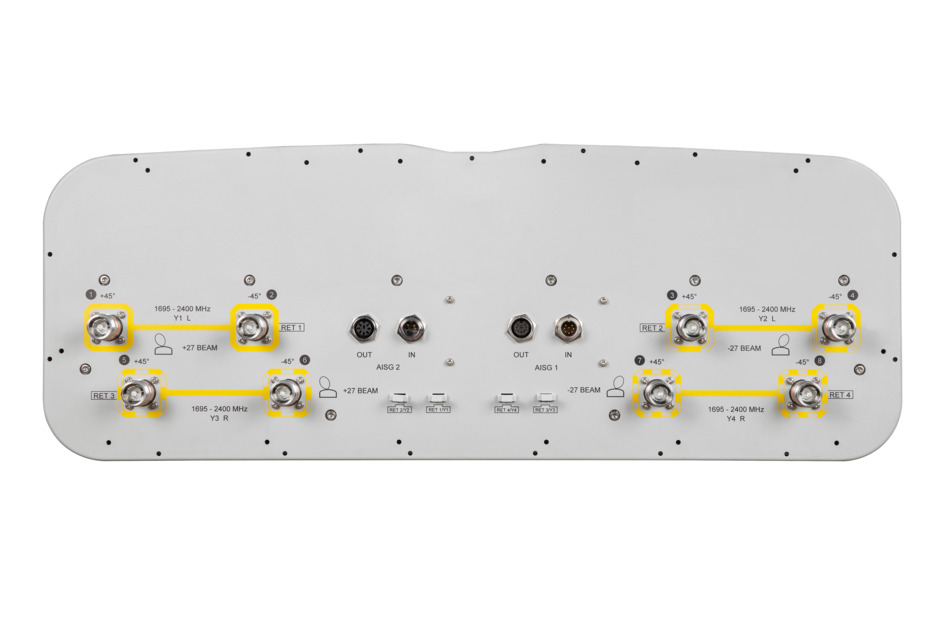

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1695 – 2400 MHz
Polarization ±45°
Total Input Power, maximum 400 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 1695–1880 1850–1990 1920–2180 2300–2400
Gain, dBi 19.1 19.7 19.9 19.4
Beam Centers, Horizontal, degrees ±27 ±27 ±27 ±27
Beamwidth, Horizontal, degrees 38 36 33 29
Beamwidth, Vertical, degrees 7.4 7 6.6 5.9
Beam Tilt, degrees 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 19 20 19 17
Front-to-Back Ratio at 180°, dB 37 37 35 33
Isolation, Cross Polarization, dB 28 28 28 28
Isolation, Inter-band, dB 16 16 16 16
VSWR | Return loss, dB 1.46 | 14.5 1.46 | 14.5 1.46 | 14.5 1.46 | 14.5
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 200 200 200 200

Mechanical Specifications

Mechanical Tilt Range 0°–24°
Wind Loading @ Velocity, frontal 557.0 N @ 150 km/h (125.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 175.0 N @ 150 km/h (39.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 759.0 N @ 150 km/h (170.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 574.0 N @ 150 km/h (129.0 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 797 mm | 31.378 in
Depth, packed 402 mm | 15.827 in
Length, packed 1501 mm | 59.095 in
Weight, gross 41.7 kg | 91.933 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Multibeam
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (4)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 1350 mm | 53.15 in
Net Weight, without mounting kit 30.8 kg | 67.902 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1695 – 2400 MHz
Polarization ±45°
Total Input Power, maximum 400 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 1695–1880 1850–1990 1920–2180 2300–2400
Gain, dBi 19.1 19.7 19.9 19.4
Beam Centers, Horizontal, degrees ±27 ±27 ±27 ±27
Beamwidth, Horizontal, degrees 38 36 33 29
Beamwidth, Vertical, degrees 7.4 7 6.6 5.9
Beam Tilt, degrees 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 19 20 19 17
Front-to-Back Ratio at 180°, dB 37 37 35 33
Isolation, Cross Polarization, dB 28 28 28 28
Isolation, Inter-band, dB 16 16 16 16
VSWR | Return loss, dB 1.46 | 14.5 1.46 | 14.5 1.46 | 14.5 1.46 | 14.5
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 200 200 200 200

Mechanical Specifications

Mechanical Tilt Range 0°–24°
Wind Loading @ Velocity, frontal 557.0 N @ 150 km/h (125.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 175.0 N @ 150 km/h (39.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 759.0 N @ 150 km/h (170.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 574.0 N @ 150 km/h (129.0 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 797 mm | 31.378 in
Depth, packed 402 mm | 15.827 in
Length, packed 1501 mm | 59.095 in
Weight, gross 41.7 kg | 91.933 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
