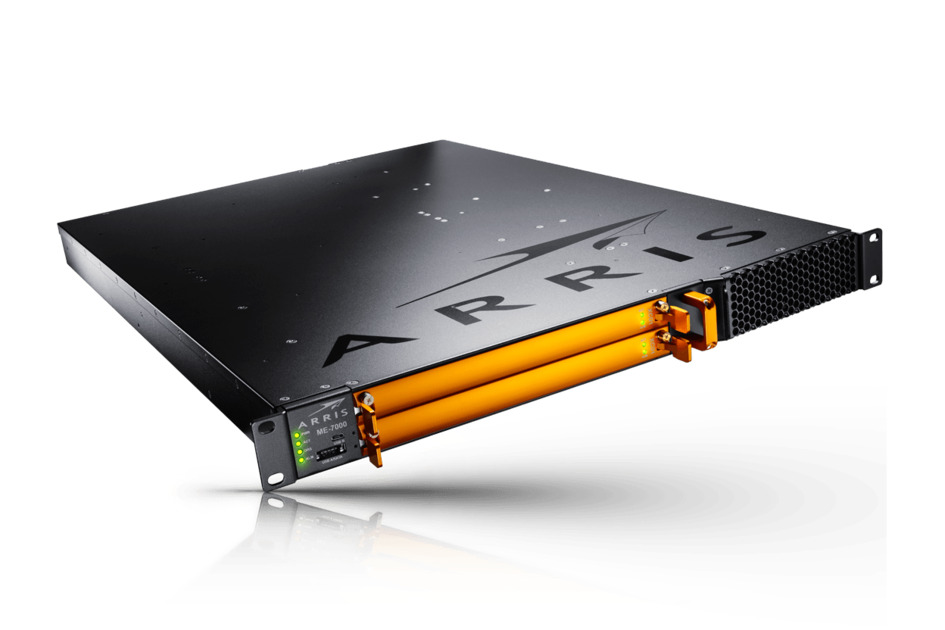

ME-7000 | ME-7000 Converged Compression Platform

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

High density modular multi-video format encoder, transcoder with grooming, splicing and multiplexing

Contact Us for a Quote
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
The ME-7000 high performance converged compression platform is focused on the efficient delivery of high quality linear broadcast video for IPTV, cable, satellite and OTT applications. It provides multi-codec support of HEVC, MPEG-4 AVC and MPEG-2 encoding. Output formats may be UltraHD 4k, HD, SD or multi-bitrate (MBR) transcoding for ABR multi-screen IP video delivery.

Through the optimum combination of ASIC-based compression technologies coupled with ARRIS video pre-processing software enhancements it provides the best of hardware and software architectures, delivering high-density and high video quality in a future-proof, upgradable platform. The ME-7000 provides a flexible and easily upgradeable system with cost saving low power per channel to provide simultaneous multi-format outputs in any environment.

The ARRIS ME-7000 converged compression platform provides unmatched video compression efficiency for the highest quality video at all bit-rates. Dedicated encoding/transcoding hardware, using the latest compression silicon designs and software techniques, delivers incredible density, saving valuable rack-space and power. Designed for 24x7 operation, the ME-7000 is the best choice for service providers delivering multi-format video services to their subscribers.
  • Dedicated programmable silicon designed for multi-codec compression
  • A consistent, high density channel count within a 1RU platform, independent of input or output encoding formats
  • Dual hot-swappable power supplies for ultimate flexibility of 24 x 7 operation
  • Flexible configuration options simplify headend architectures, reduce chassis count, and increase reliability
  • Embedded Element ManagerGUI for easy drag and drop configuration and management along with XML configuration over HTTPS
  • Reduced capital and operational costs through reduced rack-space, less power and cooling requirements, compared with software based encoders
  • Modular upgradeability to UHD, HEVC codec support as required

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Converged compression platform

General Specifications

Audio Passthrough, encode, transcode and loudness leveling for Dolby Digital, Dolby Digital Plus, MPEG1-L2, HE-AAC and AAC-LC options
Cooling Type Front to rear airflow
Data SCTE 35 ad insertion splice points from SCTE104, EIA608/708 closed-captioning, SCTE27, Teletext, OP-47, and DVB subtitling
Grooming/Muxing & Ad Splicing Performs grooming, MPEG-2, MPEG-4 & HEVC Ad splicing and processing-intensive multiplexing
Modules, quantity 3
Rack Units 1
Video Formats HD | HEVC | MPEG-2 | MPEG-4 | SD
Video Inputs 1 GB Ethernet Optical/Copper | 10 GB Ethernet Optical/Copper | MPEG-2 | MPEG-4 | SDI
Video Outputs 1 GB Ethernet Optical/Copper | 10 GB Ethernet Optical/Copper | Main plus Picture in Picture | Multi-Bit Rate (MBR) | Unicast or Multicast

Dimensions

Height 44.45 mm | 1.75 in
Width 447.04 mm | 17.6 in
Depth 673.1 mm | 26.5 in

Electrical Specifications

Power Consumption, module 1 260 W
Power Consumption, module 2 330 W
Power Consumption, module 3 400 W
Power Supply, ac 100–240 V
Power Supply, dc -44 to -60 V

Environmental Specifications

Operating Temperature 0 °C to +50 °C (+32 °F to +122 °F)
Operating Humidity 5%–95%
Operating Altitude 0 meters to 3048 meters (0 feet to 10,000 feet)
Standards Compliance CAN/CSA | CB | CE | CISPR | FCC | GS | ICES | REACH | RoHS Compliant | UL | VCCI | WEEE

Packaging and Weights

Weight, gross 17.69 kg | 39 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
