760254288 | CTX-6
- Available in:
- North America

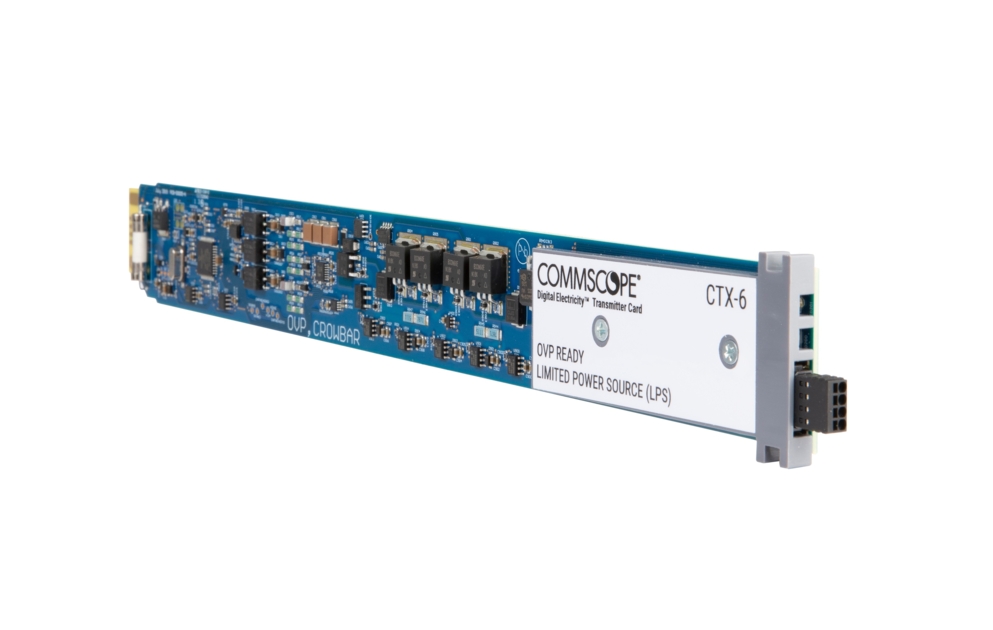

Constellation™ Transmitter Card, 600 W, fault managed power delivery card interface between the CPCX-12 and the power delivery cabling. Up to 24 can be loaded into the CPCX-12
Specifications
Product Classification
| Regional Availability | North America |
| Portfolio | SYSTIMAX® |
| Product Type | Power transmitter card |
| Product Brand | Constellation™ |
General Specifications
| Color | Gray |
| Rack Units | 1 |
| Standards | CISPR 32 IEC/EN 55032 | EN 300 386 v2.1.1 | EN 50121-4 | FCC Part 15B Class A |
Dimensions
| Height | 14.48 mm | 0.570 in |
| Width | 38.2 mm | 1.504 in |
| Depth | 338.9 mm | 13.343 in |
| Length | 338.9 m | 13.343 in |
Electrical Specifications
| Output Current, maximum | 3 A |
| Output Power, maximum | 600 W |
| Output Voltage | 336 Vdc |
Material Specifications
| Material Type | Molded plastic |
Environmental Specifications
| Operating Temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Storage Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Relative Humidity | 5%–95%, non-condensing |
| Environmental Space | Indoor |
| Safety Standard | IEC 62368-1 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
