760258441 | MDU-TAP-SCU18-NN/NN-M
Base Product: MDU-TAP
Multi Dwelling unit Terminal access point with SC-UPC shuttered connectors, terminating and splitter 1:8, with wall magnet
Features and Benefits
- Extremely small form reduces space requirments needed within the building
- Different tap ratio’s allows networks to be optimized to reduce loss and improve reach
- Pre-installed splitters protected and sealed
- Suitable for in-building environment
- Utilizes shuttered SC/APC adapters providing a safe working environment
- In-molded color coded label for identification of tap ratio with possiblility of an QR code
- Optional cable attachment for strength relief and aditional cover for the adapters/connectors
- Plug and play solution allows for reduced installation skill requirments and greatly improves speed of installation
Specifications
Product Classification
| Portfolio | CommScope® |
| Product Type | MDU tap |
General Specifications
| Functionality | Patching | Splitting |
| Adapter Type | Input (1) | Output (8) | Thru (1) |
| Adapters, quantity | 10 |
| Color | Light gray |
| Distribution Type | 8-port tap |
| Front Cover Type | Screw-on |
| Interface | SC/UPC |
| Mounting | Mounting magnet | Wall |
| Split Ratio | Terminating |
Dimensions
| Height | 100 mm | 3.937 in |
| Width | 75 mm | 2.953 in |
| Depth | 60 mm | 2.362 in |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) |

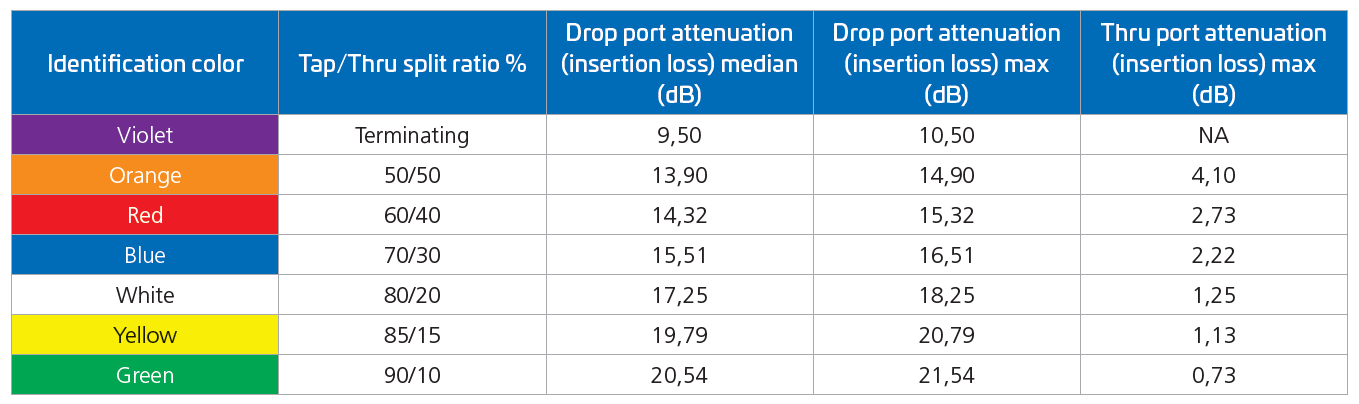

Optical Performance
| Click on image to enlarge. |
Optical Specifications
| Fiber Mode | Singlemode |
Environmental Specifications
| Environmental Space | Indoor | Riser |
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Height, packed | 120 mm | 4.724 in |
| Width, packed | 170 mm | 6.693 in |
| Depth, packed | 295 mm | 11.614 in |
| Packaging quantity | 40 |
| Packaging Type | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Portfolio | CommScope® |
| Product Type | MDU tap |
General Specifications
| Functionality | Patching | Splitting |
| Adapter Type | Input (1) | Output (8) | Thru (1) |
| Adapters, quantity | 10 |
| Color | Light gray |
| Distribution Type | 8-port tap |
| Front Cover Type | Screw-on |
| Interface | SC/UPC |
| Mounting | Mounting magnet | Wall |
| Split Ratio | Terminating |
Dimensions
| Height | 100 mm | 3.937 in |
| Width | 75 mm | 2.953 in |
| Depth | 60 mm | 2.362 in |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) |
Optical Specifications
| Fiber Mode | Singlemode |
Environmental Specifications
| Environmental Space | Indoor | Riser |
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Height, packed | 120 mm | 4.724 in |
| Width, packed | 170 mm | 6.693 in |
| Depth, packed | 295 mm | 11.614 in |
| Packaging quantity | 40 |
| Packaging Type | Box | Carton |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Documentation & Downloads
Building Information Modeling (BIM) Objects
Installation Instruction
Visio Stencil
Warranty
Building Information Modeling (BIM) Objects
Installation Instruction
Product Compliance Documentation
Visio Stencil
Warranty
Related Products and Accessories
Related Products
Hubs, Closures, Terminals & Boxes
-

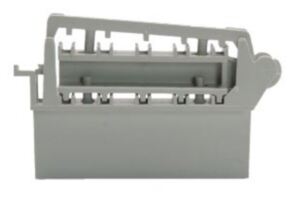

760252496 | MDU-TAP-18-CAB MDU-TAP Bracket, only to be used for a 2x3 mm cable -

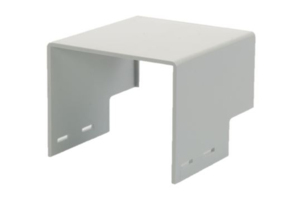

760252504 | MDU-TAP-18-COV MDU-TAP Cover, to be used in combination with MDU Bracket (MDU-TAP-18-CAB)
