107992927 | M40A1-B-262
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

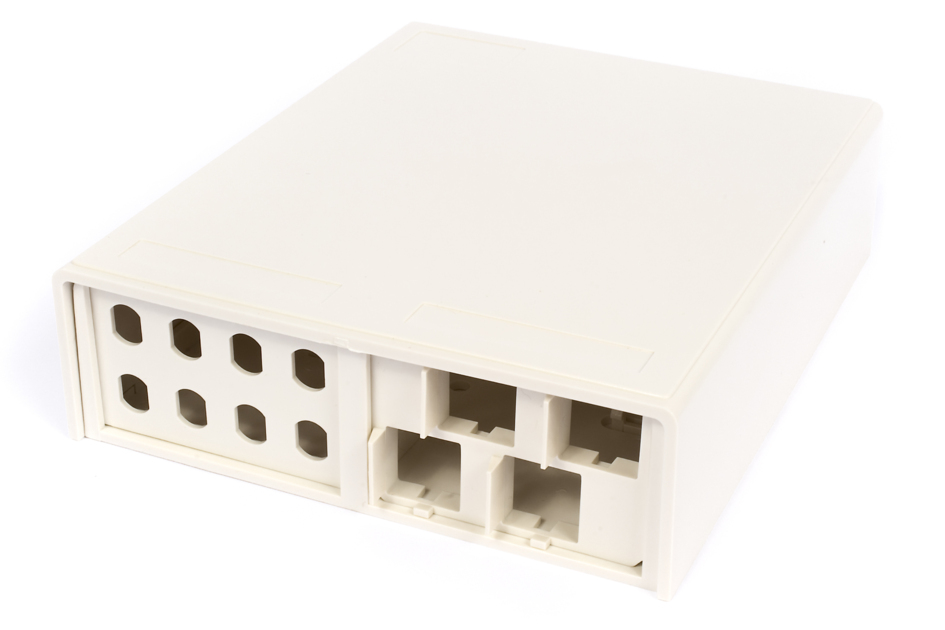

M40 Surface Mount Box
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Surface mount box |
General Specifications
| Application | Support a copper/fiber intergrated environment |
| Color | White |
| Mounting | Surface |
Dimensions
| Height | 174.75 mm | 6.88 in |
| Width | 5.79 mm | 0.228 in |
| Depth | 43.18 mm | 1.7 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 0.318 kg | 0.7 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Surface mount box |
General Specifications
| Application | Support a copper/fiber intergrated environment |
| Color | White |
| Mounting | Surface |
Dimensions
| Height | 174.75 mm | 6.88 in |
| Width | 5.79 mm | 0.228 in |
| Depth | 43.18 mm | 1.7 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 0.318 kg | 0.7 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
