1571A

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

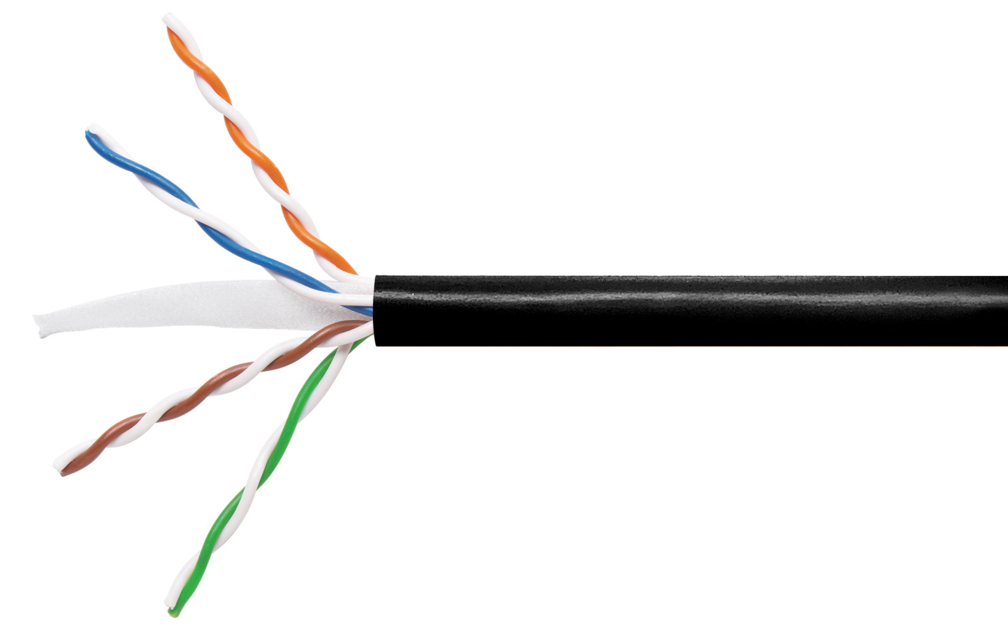

1571A Category 6 Cable

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of 1571A by selecting options

	Product	Regional Availability	Portfolio	Product Type	Environmental Space	Cable Type	Jacket Color	Product Number	Packaging Type	Pairs, quantity	Jacket Material	Cable Length	EN50575 CPR Cable EuroClass Fire Performance
	760008888 \| 1571A BK 4/24 R1000 GigaSPEED XL® 1571 Category 6 U/UTP Cable, outdoor, black jacket, 4 pair count, 1000 ft (305 m) length, reel Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	SYSTIMAX®	Twisted pair cable	Buried	U/UTP (unshielded)	Black	1571A	Reel	4	PE	304.8 m \| 1000 ft	Fca
	760090043 \| 1571A BK 4/24 R3000 GigaSPEED XL® 1571 Category 6 U/UTP Cable, outdoor, black jacket, 4 pair count, 3000 ft (914 m) length, reel Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	SYSTIMAX®	Twisted pair cable	Buried	U/UTP (unshielded)	Black	1571A	Reel	4	PE	914.4 m \| 3000 ft	Fca

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	SYSTIMAX®
Product Type	Twisted pair cable
Product Brand	GigaSPEED XL®

General Specifications

Product Number	1571A
ANSI/TIA Category	6
Cable Component Type	Horizontal
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Pairs, quantity	4
Transmission Standards	ANSI/TIA-568.2-D \| CENELEC EN 50288-6-1 \| ISO/IEC 11801 Class E

Dimensions

Diameter Over Jacket, nominal	6.604 mm \| 0.26 in
Jacket Thickness	0.635 mm \| 0.025 in
Conductor Gauge, singles	24 AWG

Electrical Specifications

Characteristic Impedance	100 ohm
dc Resistance Unbalance, maximum	5 %
dc Resistance, maximum	9.38 ohms/100 m \| 2.859 ohms/100 ft
Delay Skew, maximum	45 ns
Dielectric Strength, minimum	1500 Vac \| 2500 Vdc
Mutual Capacitance at Frequency	6.0 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	65 %
Operating Frequency, maximum	250 MHz
Operating Voltage, maximum	80 V
Remote Powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Safety Voltage Rating	300 V

Material Specifications

Conductor Material	Bare copper
Insulation Material	Polyolefin
Jacket Material	PE
Separator Material	Polyolefin
