760255005 | P-016-HY-8G1-F30YL/8X16AWG/CTX

Available in:
North America

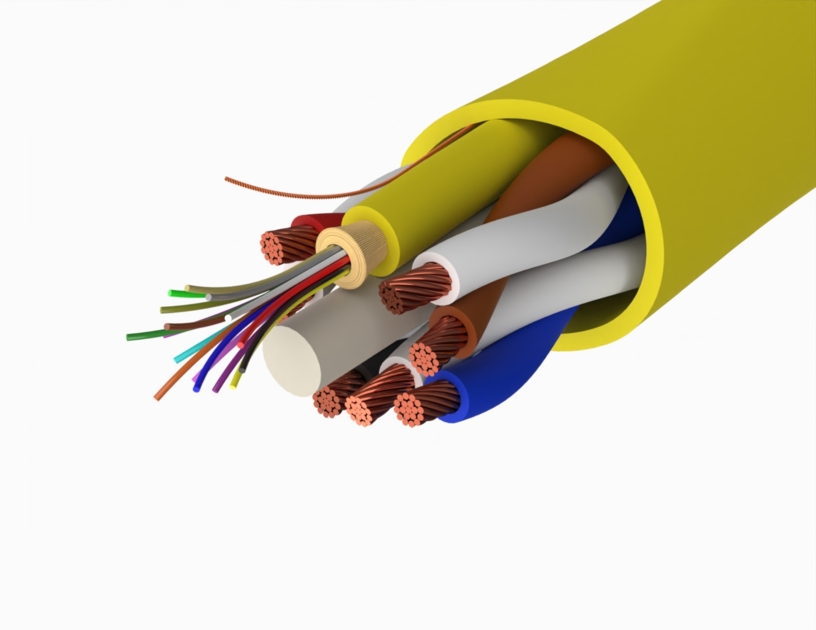

Constellation® Plenum Hybrid Fault Managed Power Cable, 16 Fiber Loose Tube, 8 Conductor 16 AWG Twisted Pairs

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

Product Classification

Regional Availability	North America
Portfolio	CommScope®
Product Type	Hybrid cable, copper and fiber
Product Brand	Constellation™

General Specifications

Cable Type	Fault managed power cable \| Hybrid \| MPO trunk cable \| U/UTP (unshielded)
Conductor Type, singles	Stranded
Conductors, quantity	8
Construction Type	Non-armored
Fiber Short Description	P-016-MP30
Subunit Type	Gel-free
Jacket Color	Yellow
Subunit Jacket Color	Yellow
Subunit, quantity	1
Fibers per Subunit, quantity	16
Total Fiber Count	16

Dimensions

Buffer Tube/Subunit Diameter	2.997 mm \| 0.118 in
Diameter Over Jacket, nominal	12.167 mm \| 0.479 in
Insulation Thickness, singles	4.064 mm \| 0.16 in
Jacket Thickness	0.838 mm \| 0.033 in
Conductor Gauge	16 AWG

Electrical Specifications

Capacitance	82.021 pF/m \| 25 pF/ft
Conductor dc Resistance	13.615 ohms/km \| 4.15 ohms/kft
Dielectric Strength, conductor to shield	6000 Vdc

Material Specifications

Conductor Material	Bare copper \| Stranded copper wire
Insulation Material, singles	PVC
Jacket Material	Fire retardant PVC
Inner Jacket Material	PVC
Ripcord Material	Polyester

Mechanical Specifications

Minimum Bend Radius, loaded	482.600 mm \| 19 in
Minimum Bend Radius, unloaded	243.840 mm \| 9.6 in
Tensile Load, long term, maximum	444.822 N \| 100 lbf
Tensile Load, short term, maximum	1334.466 N \| 300 lbf
Compression	1.018 kg/mm \| 57 lb/in
Compression Test Method	FOTP-41
Flex	25 cycles
Flex Test Method	FOTP-104
Impact	2.942 N-m \| 2.17 ft lb
Impact Test Method	FOTP-25
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33
Twist	10 cycles
Twist Test Method	FOTP-85

Optical Specifications

Fiber Type

G.657.A2/B2

Environmental Specifications

Installation temperature	0 °C to +70 °C (-32 °F to +158 °F)
Operating Temperature	0 °C to +75 °C (+32 °F to +167 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification Standards	ANSI/ICEA S-83-596 \| Telcordia GR-409 \| UL 1400-2 \| UL 444
Environmental Space	Indoor \| Plenum
Flame Test Listing	NEC CL4P-OF (ETL) and c(ETL) \| NEC CMP-OF (ETL) and c(ETL)
Flame Test Method	NFPA 262

Environmental Test Specifications

Low High Bend	0 °C to +70 °C (+32 °F to +158 °F)
Low High Bend Test Method	FOTP-37
Temperature Cycle	0 °C to +70 °C (+32 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3

Packaging and Weights

Cable weight

203.878 kg/km | 137 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
UK-ROHS	Compliant
