760252101 | O-024-CA-8W-M12RD/GY/HD

Base Product: O-CA

  • Available in:
  • Australia/New Zealand
  • EMEA

Fiber OSP cable, 24-fiber, HDPE, loose tube, gel-filled, Singlemode G.652.D and G.657.A1, Meters jacket marking, Red jacket color, 1000 m. Provides Rodent Resistance

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Australia/New Zealand | EMEA
Portfolio CommScope®
Product Type Fiber OSP cable
Product Series O-CA

General Specifications

Armor Type Corrugated steel
Cable Type Loose tube
Construction Type Armored
Subunit Type Gel-filled
Filler, quantity 1
Jacket Color Red
Jacket Marking Meters
Jacket Marking Method Inkjet
Jacket Marking Text COMMSCOPE GB SYSTEM F.O. CABLE 760252101 CSA GEL LOOSE TUBE 24X9/125 OS2 HDPE (Serial NUMBER) (METER MARK)
Fibers per Subunit, quantity 24
Total Fiber Count 24

Dimensions

Cable Length 1000 m | 3280.84 ft
Buffer Tube/Subunit Diameter 4 mm | 0.157 in
Diameter Over Jacket 10.5 mm | 0.413 in

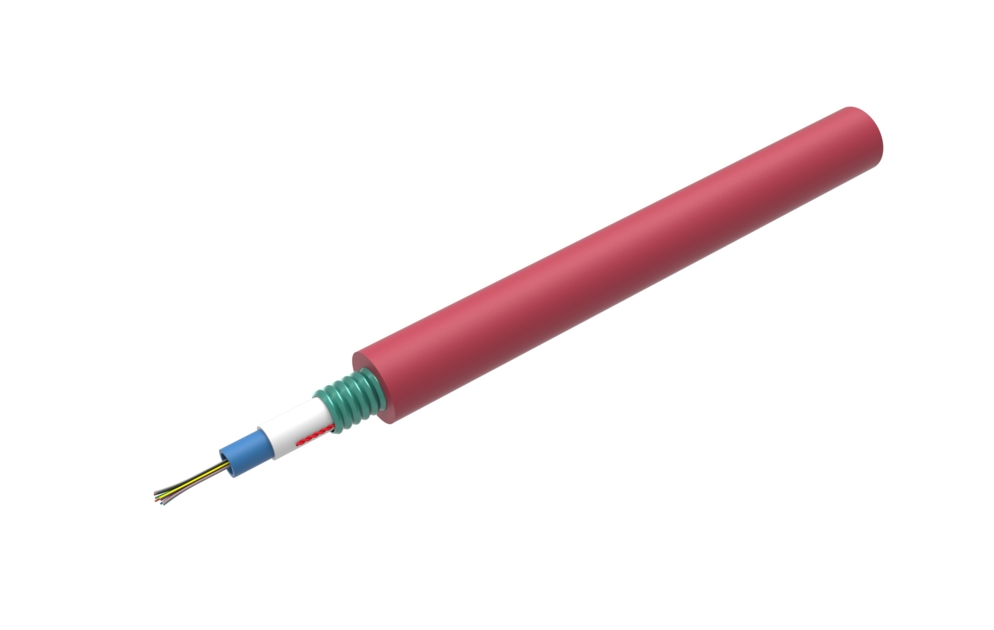

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material High density polyethylene (HDPE)

Mechanical Specifications

Minimum Bend Radius, loaded 210 mm | 8.268 in
Minimum Bend Radius, unloaded 160 mm | 6.299 in
Tensile Load, long term, maximum 1250 N | 281.011 lbf
Compression 3000 N/mm | 17130.441 lb/in
Compression Test Method IEC 60794-1-2 E3
Flex 25 cycles
Impact 5 N-m | 44.254 in lb
Impact Test Method IEC 60794-1 E4
Twist 5 cycles
Twist Test Method IEC 60794-1 E7

Optical Specifications

Fiber Type OS2

Optical Specifications, Wavelength Specific

Attenuation, maximum 0.35 dB/km @ 1,300 nm | 0.35 dB/km @ 1,550 nm | 0.45 dB/km @ 1,310 nm
Standards Compliance IEC 60794-1 | TIA-492CAAB (OS2)

Environmental Specifications

Installation temperature -5 °C to +50 °C (+23 °F to +122 °F)
Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Water Penetration 24 h
Water Penetration Test Method IEC 60794-1 F5

Environmental Test Specifications

Temperature Cycle -20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method IEC 60794-1-2 F1

Packaging and Weights

Cable weight 151 kg/km | 101.467 lb/kft
