760249732 | O-048-LN-5X-M12BK/22G/093

Base Product: O-LN

Available in:
Asia
Australia/New Zealand

Fiber OSP cable, PE, Stranded Loose Tube Gel-filled, 48 fiber, Multimode OM4, Meters jacket marking, Black jacket color

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand
Portfolio	CommScope®
Product Type	Fiber OSP cable
Product Series	O-LN

General Specifications

Cable Type	Stranded loose tube
Construction Type	Non-armored
Subunit Type	Gel-filled
Filler, quantity	2
Jacket Color	Black
Jacket Marking	Meters
Subunit, quantity	4
Fibers per Subunit, quantity	12
Total Fiber Count	48

Dimensions

Buffer Tube/Subunit Diameter	2.2 mm \| 0.087 in
Diameter Over Jacket	10.5 mm \| 0.413 in

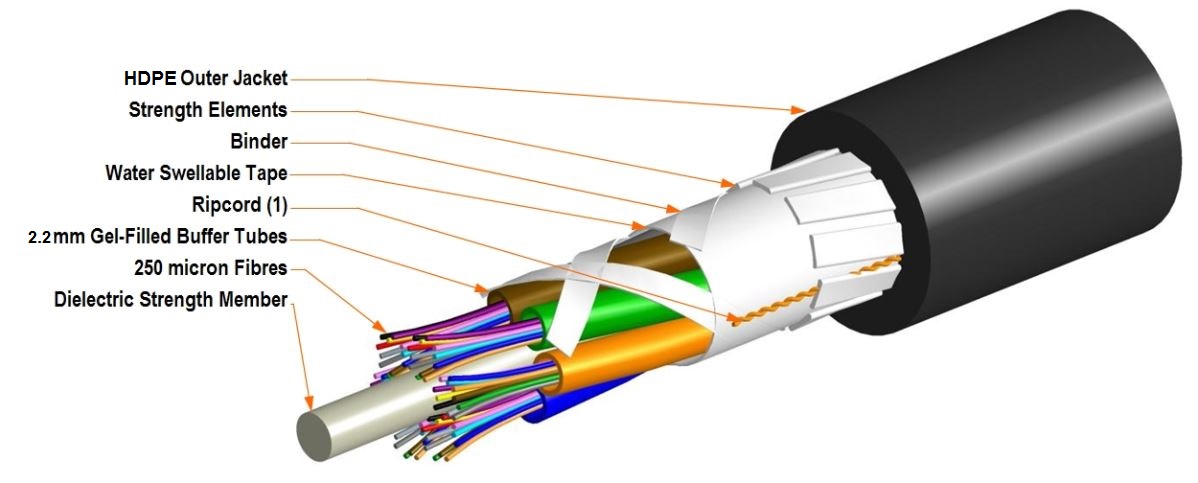

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material

High density polyethylene (HDPE)

Mechanical Specifications

Minimum Bend Radius, loaded	210 mm \| 8.268 in
Minimum Bend Radius, unloaded	105 mm \| 4.134 in
Tensile Load, long term, maximum	890 N \| 200.080 lbf
Tensile Load, short term, maximum	2700 N \| 606.984 lbf
Compression	20 N/mm \| 114.203 lb/in
Compression Test Method	IEC 60794-1-2 E3
Flex	25 cycles
Strain	See long and short term tensile loads
Strain Test Method	IEC 60794-1-21 E1

Optical Specifications

Fiber Type

OM4

Optical Specifications, Wavelength Specific

Attenuation, maximum

1.00 dB/km @ 1,300 nm | 3.00 dB/km @ 850 nm

Environmental Specifications

Installation temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space	Buried \| Ducted \| Outdoor
Water Penetration	24 h
Water Penetration Test Method	IEC 60794-1 F5B

Environmental Test Specifications

Temperature Cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method	IEC 60794-1-2 F1

Packaging and Weights

Cable weight

86 kg/km | 57.789 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
