2-1716354-4 | C-002-DN-8G-MSUYL/AY/D

Base Product: C-DS

Available in:
Asia
EMEA

Fiber Indoor/Outdoor Drop Cable, FTTH, 2 fibers, Singlemode, G.657.A2, Gel-free, Meters jacket marking, Yellow jacket color, Dca Flame Rating

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

designed to offer flexibility, strength and compact construction for internal and interbuilding use
non-metallic construction reinforced by E-glass yarns, which provide rodent resistance and higher tensile strength
oversheathed with a ULSZH jacket meeting IEC fire performance requirements

Specifications

Product Classification

Regional Availability	Asia \| EMEA
Portfolio	CommScope®
Product Type	Fiber indoor/outdoor cable
Product Series	C-DN

General Specifications

Cable Type	Drop \| Semi-tight buffer
Jacket Color	Yellow
Jacket Marking	Meters
Jacket Marking Method	Inkjet
Strength Members	Central fiber reinforced polymer (FRP) rod
Subunit, quantity	2
Fibers per Subunit, quantity	1
Total Fiber Count	2
Buffer Type	Semi-tight

Dimensions

Cable Length	1000 m \| 3280.840 ft
Buffer Tube/Subunit Diameter	0.9 mm \| 0.035 in
Diameter Over Jacket	4 mm \| 0.157 in

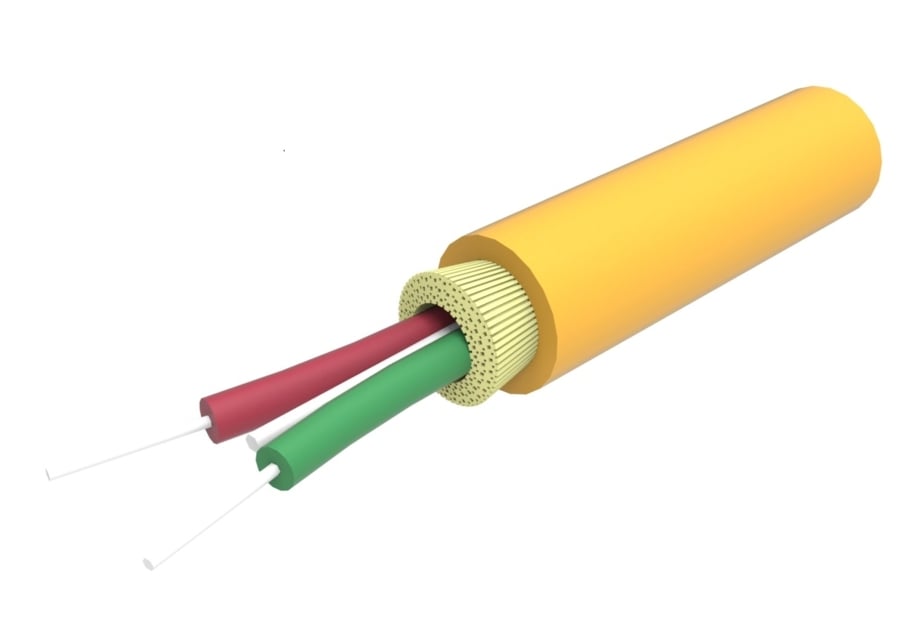

Representative Image

Click on image to enlarge.

Material Specifications

Inner Jacket Material

Low Smoke Zero Halogen (LSZH)

Mechanical Specifications

Minimum Bend Radius, loaded	100 mm \| 3.937 in
Minimum Bend Radius, unloaded	60 mm \| 2.362 in
Tensile Load, long term, maximum	600 N \| 134.885 lbf
Tensile Load, short term, maximum	1200 N \| 269.771 lbf
Compression	20 N/mm \| 114.203 lb/in
Compression Test Method	IEC 60794-1 E3
Impact	5 N-m \| 44.254 in lb
Impact Test Method	IEC 60794-1 E4
Twist	5 cycles
Twist Test Method	IEC 60794-1 E7

Optical Specifications

Fiber Type

G.657.A2, TeraSPEED®

Optical Specifications, Wavelength Specific

Attenuation, maximum	0.50 dB/km @ 1,310 nm \| 0.50 dB/km @ 1,550 nm
Standards Compliance	IEC 60794-1 \| ITU-T G.657.A2

Environmental Specifications

Installation temperature	-30 °C to +60 °C (-22 °F to +140 °F)
Operating Temperature	-30 °C to +60 °C (-22 °F to +140 °F)
Storage Temperature	-30 °C to +60 °C (-22 °F to +140 °F)
EN50575 CPR Cable EuroClass Fire Performance	Dca
EN50575 CPR Cable EuroClass Smoke Rating	s1a
EN50575 CPR Cable EuroClass Droplets Rating	d0
EN50575 CPR Cable EuroClass Acidity Rating	a1
Environmental Space	Drop \| Low Smoke Zero Halogen (LSZH)
Water Penetration	24 h

Environmental Test Specifications

Temperature Cycle	-30 °C to +60 °C (-22 °F to +140 °F)
Temperature Cycle Test Method	IEC 60794-1-2 F1

Packaging and Weights

Cable weight

16.3 kg/km | 10.953 lb/kft
