760251283 | P-002-DU-5K-M15AQ/AY/LTS

Available in:
Australia/New Zealand
EMEA
Latin America
Middle East/Africa
North America

Fiber indoor cable, LazrSPEED® Plenum Light Duty Interconnect Cordage, 2 fiber, Multimode OM4, Meters jacket marking, Aqua jacket color

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

Product Classification

Regional Availability	Australia/New Zealand \| EMEA \| Latin America \| Middle East/Africa \| North America
Portfolio	CommScope®
Product Type	Fiber indoor cable
Product Series	P-DU

General Specifications

Cable Type	MPO trunk cable
Construction Type	Non-armored
Subunit Type	Gel-free
Jacket Color	Aqua
Jacket Marking	Meters
Total Fiber Count	2

Dimensions

Diameter Over Jacket

1.5 mm | 0.059 in

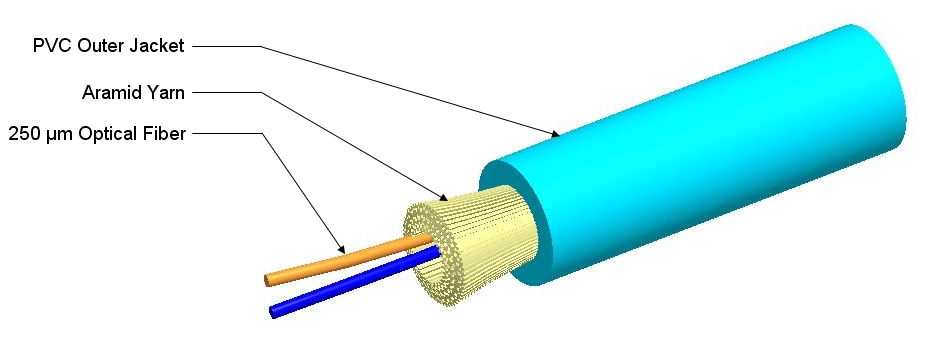

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded	30 mm \| 1.181 in
Minimum Bend Radius, unloaded	20 mm \| 0.787 in
Tensile Load, long term, maximum	30 N \| 6.744 lbf
Tensile Load, short term, maximum	100 N \| 22.481 lbf
Compression	4 N/mm \| 22.841 lb/in
Compression Test Method	FOTP-41 \| IEC 60794-1 E3
Impact	0.74 N-m \| 6.55 in lb
Impact Test Method	FOTP-25 \| IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1 E7

Optical Specifications

Fiber Type

OM4, LazrSPEED®

Environmental Specifications

Installation temperature	0 °C to +70 °C (+32 °F to +158 °F)
Operating Temperature	0 °C to +70 °C (+32 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	Telcordia GR-409
Environmental Space	Plenum
Flame Test Listing	NEC OFNP (ETL) and c(ETL)
Flame Test Method	NFPA 130 \| NFPA 262

Environmental Test Specifications

Heat Age	0 °C to +85 °C (+32 °F to +185 °F)
Heat Age Test Method	IEC 60794-1 F9
Low High Bend	0 °C to +70 °C (+32 °F to +158 °F)
Low High Bend Test Method	FOTP-37 \| IEC 60794-1 E11
Temperature Cycle	0 °C to +70 °C (+32 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1 F1

Packaging and Weights

Cable weight

2.2 kg/km | 1.478 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
