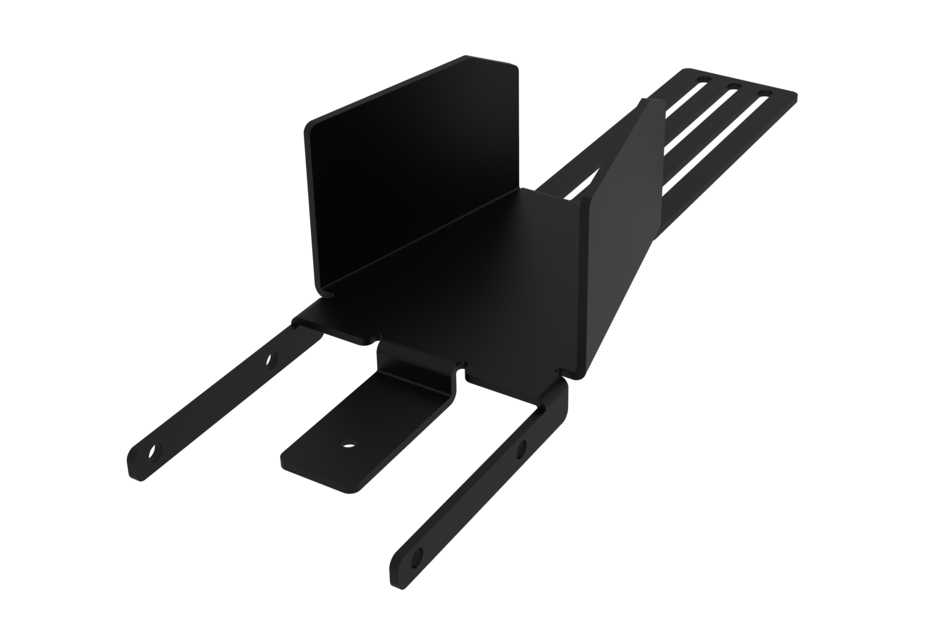

FiberGuide® 2x2in to HENDRY 3in Transition Adapter, Black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Adapter
Product Brand FiberGuide®
Product Series FGS

General Specifications

Color Black
Orientation Horizontal
Section Type Transition Adapter

Dimensions

Height 57.15 mm | 2.250 in
Width 93.218 mm | 3.670 in
Length 276.86 mm | 10.900 in
System Dimensions 51 mm x 51 mm (2 in x 2 in)

Material Specifications

Material Type Steel

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 1.315 kg | 2.899 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Adapter
Product Brand FiberGuide®
Product Series FGS

General Specifications

Color Black
Orientation Horizontal
Section Type Transition Adapter

Dimensions

Height 57.15 mm | 2.250 in
Width 93.218 mm | 3.670 in
Length 276.86 mm | 10.900 in
System Dimensions 51 mm x 51 mm (2 in x 2 in)

Material Specifications

Material Type Steel

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 1.315 kg | 2.899 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
