Warning Icon
This product was discontinued on: November 30, 2018

For other alternatives, please contact us for more information.

1 Replacement products available
  • 760175729 | RK-4PE-45-36S
    Equipment Rack, 4-Post, 36 in (914 mm) D x 7 ft (2134 mm) H - 19 in (482.6 mm) Steel (45U) 3/8 Sq Punch, Black

760175737 | RK-4PE-52-36S

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

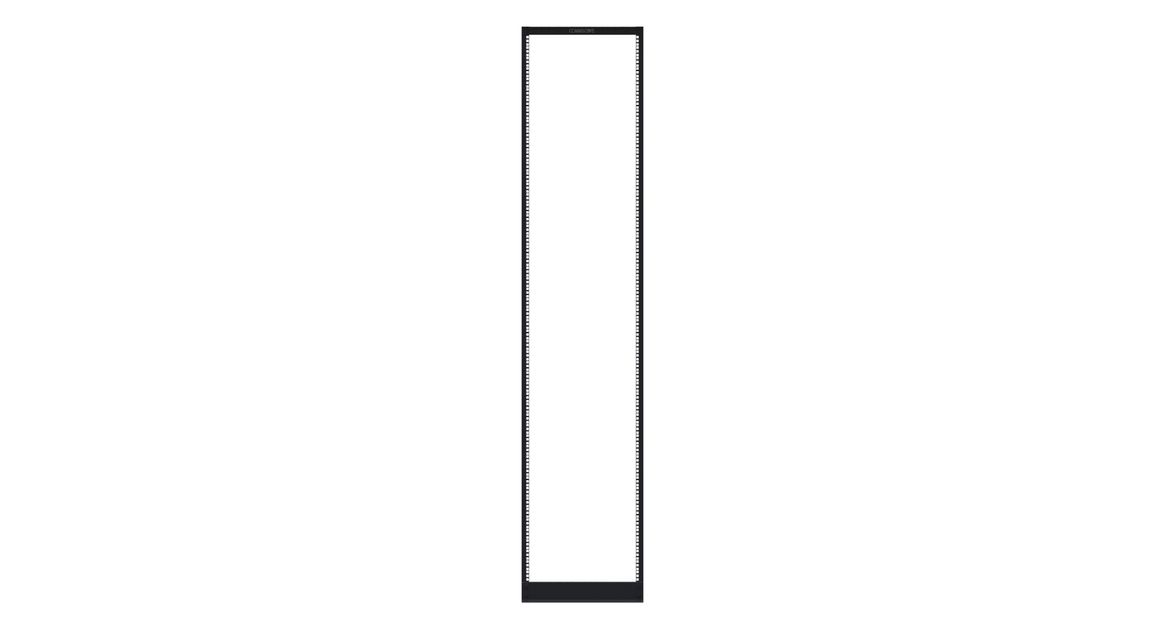

Equipment Rack, 4-Post, 39 in (737 mm) D x 8 ft (2438 mm) H - 19 in (482.6 mm) Steel (52U) 3/8 Sq Punch, Black

Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type 4 post rack

General Specifications

Color Black
Rack Type EIA 19 in
Rack Units 52
Rail Mounting Hole 3/8 in

Dimensions

Height 2438.4 mm | 96 in
Width 518.16 mm | 20.4 in
Depth 1219.2 mm | 48 in
Dimensional Standards EIA-310-E

Material Specifications

Finish Powder-coated, textured
Material Type Steel

Mechanical Specifications

Static Load Rating 907.2 kg | 2000.031 lb

Environmental Specifications

Safety Standard UL | cUL

Packaging and Weights

Included Base pan | Forty #12-24 x 1/2 in mounting screws | Forty M6 cage nuts | Four vertical rack rails | Instruction sheet | Twelve 3/8 in split lock washers | Twelve 3/8-16 UNC x 1 in hex head bolts | Twelve 3/8-16 hex nuts | Two extruded base angles | Two extruded top angles | Upper plate support
Packaging quantity 1
Packaging Type Flat packed
Weight, net 56.25 kg | 124.01 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type 4 post rack

General Specifications

Color Black
Rack Type EIA 19 in
Rack Units 52
Rail Mounting Hole 3/8 in

Dimensions

Height 2438.4 mm | 96 in
Width 518.16 mm | 20.4 in
Depth 1219.2 mm | 48 in
Dimensional Standards EIA-310-E

Material Specifications

Finish Powder-coated, textured
Material Type Steel

Mechanical Specifications

Static Load Rating 907.2 kg | 2000.031 lb

Environmental Specifications

Safety Standard UL | cUL

Packaging and Weights

Included Base pan | Forty #12-24 x 1/2 in mounting screws | Forty M6 cage nuts | Four vertical rack rails | Instruction sheet | Twelve 3/8 in split lock washers | Twelve 3/8-16 UNC x 1 in hex head bolts | Twelve 3/8-16 hex nuts | Two extruded base angles | Two extruded top angles | Upper plate support
Packaging quantity 1
Packaging Type Flat packed
Weight, net 56.25 kg | 124.01 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
