HCA-XL1B

Base Product: HCA

Available in:
Latin America
North America

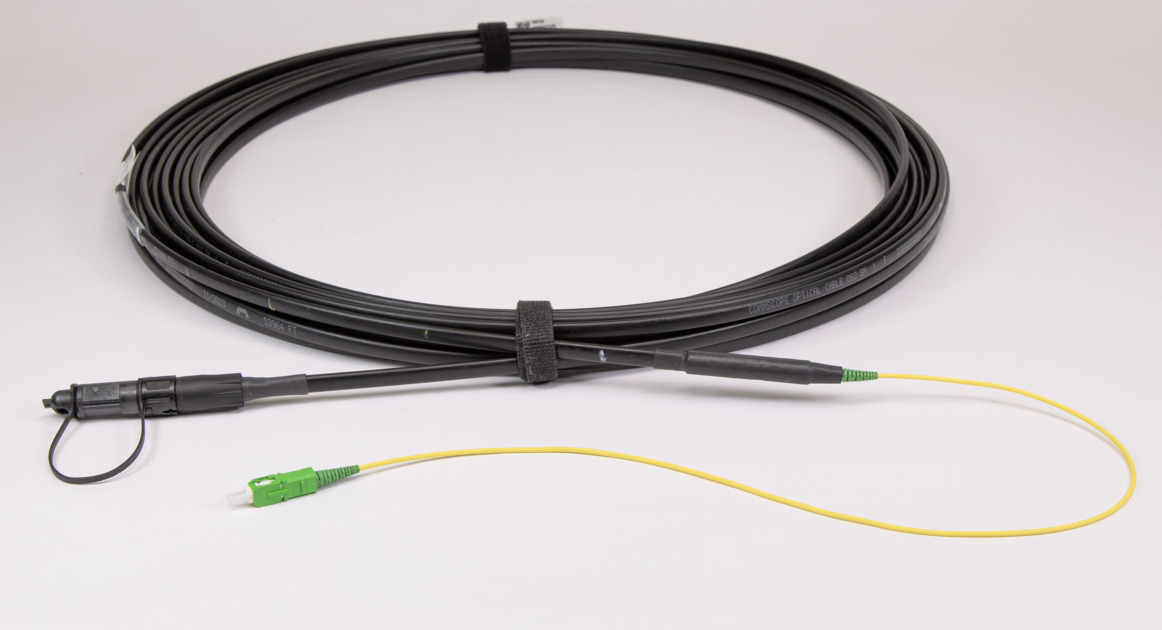

Fiber Optic Drop Cable Assembly, PRODIGY™ Connector Core with DLX converter to SC/APC connector, SST toneable cable

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Product Variants

Configure and display product variants of HCA-XL1B by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Cable Assembly Length ft m

Part Number	Cable Assembly Length
No configured items found.

Features and Benefits

Cable assembly with the Prodigy™ small form hardened connector
Compact and small footprint, space-saving design for high-density environments
Compatible with multiple hardened connectors
*Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Specifications

Product Classification

Regional Availability	Latin America \| North America
Product Type	Fiber drop cable assembly
Product Brand	PRODIGY™
Product Series	HCA
Government Requirements	Build America Buy America (BABA) compliant*

General Specifications

Cable Type	Toneable - Flat
Connector A, quantity	1
Color, boot A	Black
Color, connector A	Black
Connector B, quantity	1
Color, boot B	Green
Color, connector B	Green
Interface, Connector A	Prodigy® with DLX converter installed
Interface, Connector B	SC/APC
Jacket Color	Black
Location of Manufacturing	Catawba, North Carolina
Total Fibers, quantity	1

Dimensions

Cable Assembly Length Range (ft)	1 – 2000
Cable Outer Diameter	6.0 mm (0.24 in)

Outline Drawing

Click on image to enlarge.

Ordering Tree

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded	60 mm \| 2.362 in
Minimum Bend Radius, unloaded	60 mm \| 2.362 in
Tensile Load, long term, maximum	400 N \| 89.924 lbf
Tensile Load, short term, maximum	1350 N \| 303.492 lbf
Cable Crush Resistance, maximum	10 N/mm \| 57.101 lb/in
Dust Cap Pulling Force, minimum	445 N \| 100.040 lbf
Mating Durability, maximum	0.5 dB @ 100 cycles

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2/B2
Insertion Loss, maximum, connector A	0.4 dB
Insertion Loss, typical	0.15 dB
Return Loss, minimum, connector A	65 dB

Environmental Specifications

Installation temperature	-30 °C to +60 °C (-22 °F to +140 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Environmental Space	Outdoor
Jacket UV Resistance	UV stabilized
Qualification Standards	Telcordia GR-3120-CORE

Packaging and Weights

Cable weight

19 kg/km | 12.767 lb/kft
