HCA-D01G

Base Product: HCA

Available in:
EMEA

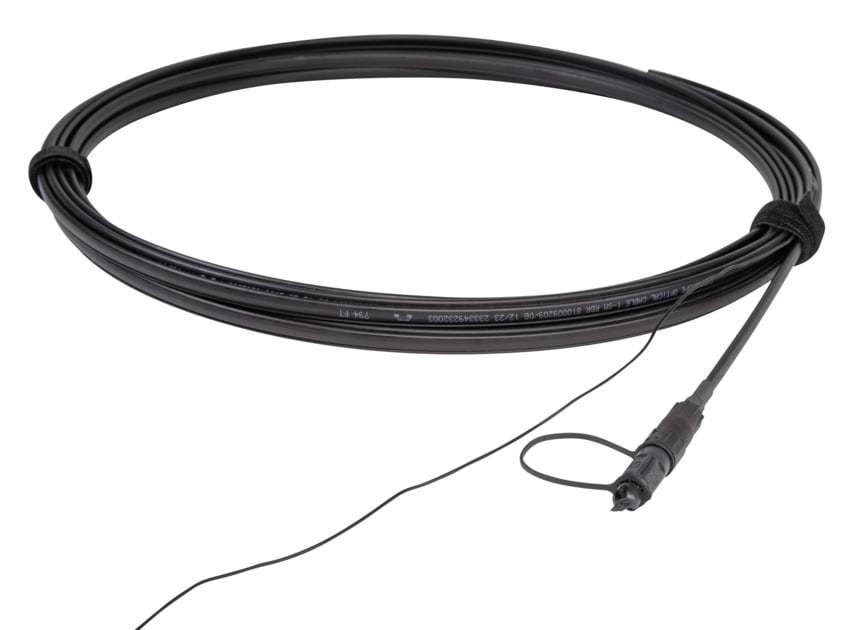

Fiber Optic Drop Cable assembly, PRODIGY™ Connector core with Bayonet + full size converter included. 4.5 mm round cable

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of HCA-D01G by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Cable Assembly Length

Part Number	Cable Assembly Length
No configured items found.

Features and Benefits

Cable assembly with the Prodigy™ small form hardened connector
Compact and small footprint, space-saving design for high-density environments
Compatible with multiple hardened connectors

Specifications

Product Classification

Regional Availability	EMEA
Product Type	Fiber drop cable assembly
Product Brand	PRODIGY™
Product Series	HCA

General Specifications

Cable Type	Dielectric - Round
Connector A, quantity	1
Color, boot A	Black
Color, connector A	Black
Interface, Connector A	Prodigy®
Interface, Connector B	Unterminated
Jacket Color	Black
Total Fibers, quantity	1

Dimensions

Cable Assembly Length Range (m)	3 – 609
Cable Outer Diameter	4.5 mm (0.18 in)

Ordering Tree

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded	75 mm \| 2.953 in
Minimum Bend Radius, unloaded	25 mm \| 0.984 in
Tensile Load, long term, maximum	300 N \| 67.443 lbf
Tensile Load, short term, maximum	1200 N \| 269.771 lbf
Cable Crush Resistance, maximum	10 N/mm \| 57.101 lb/in
Dust Cap Pulling Force, minimum	445 N \| 100.040 lbf
Mating Durability, maximum	0.5 dB @ 100 cycles

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2, TeraSPEED®
Insertion Loss, maximum, connector A	0.4 dB
Insertion Loss, typical	0.15 dB
Return Loss, minimum, connector A	65 dB

Environmental Specifications

Installation temperature	0 °C to +60 °C (-32 °F to +140 °F)
Operating Temperature	-25 °C to +70 °C (-13 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space	Outdoor
Jacket UV Resistance	UV stabilized
Qualification Standards	IEC 61753-1

Packaging and Weights

Cable weight

30 kg/km | 20.159 lb/kft
