L-LN

Base Product
  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

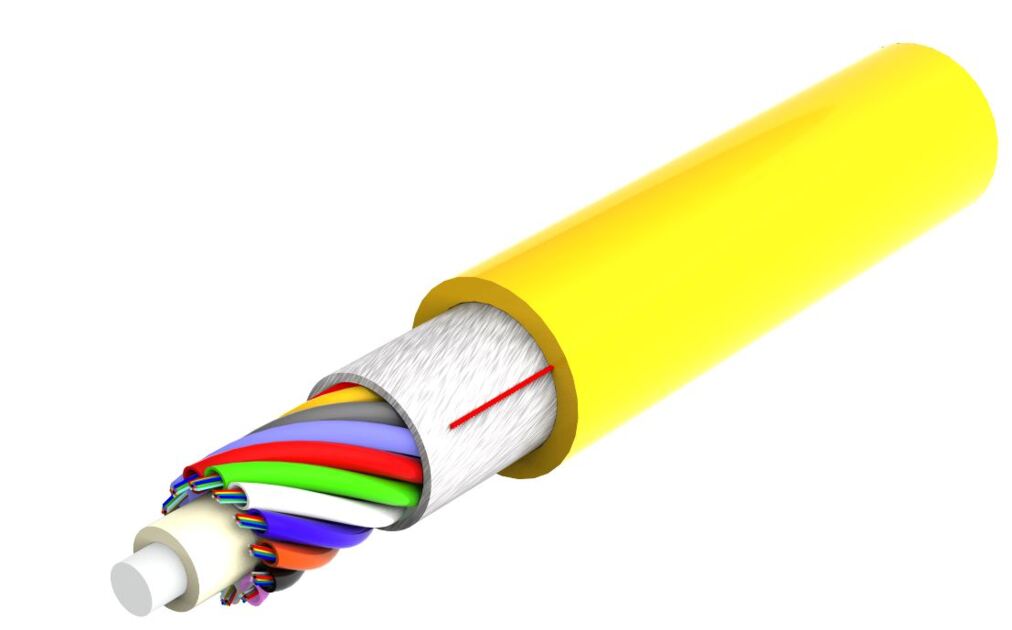

Fiber Optic Cable, Indoor Zero Halogen, CPR-only flame rated, Stranded Loose Tube All-Dielectric

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of L-LN by selecting options

Loading...
Features and Benefits
  • CommScope’s indoor fiber cables are positioned for Data Center or Central Office applications
  • Superior mechanical and optical performance with unmatched stability and quality
  • Available Jacket Colors: Aqua and Yellow

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber indoor cable
Product Series L-LN

General Specifications

Cable Type Stranded microsheath tube
Construction Type Non-armored
Subunit Type Gel-free

Ordering Tree

Click on image to enlarge.

Material Specifications

Inner Jacket Material Low Smoke Zero Halogen (LSZH)

Environmental Specifications

Installation temperature 0 °C to +50 °C (+32 °F to +122 °F)
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space Low Smoke Zero Halogen (LSZH)

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber indoor cable
Product Series L-LN

General Specifications

Cable Type Stranded microsheath tube
Construction Type Non-armored
Subunit Type Gel-free

Material Specifications

Inner Jacket Material Low Smoke Zero Halogen (LSZH)

Environmental Specifications

Installation temperature 0 °C to +50 °C (+32 °F to +122 °F)
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space Low Smoke Zero Halogen (LSZH)
