MTC3713
Base Product: ROOFTOP-MOUNTS-AND-ACCESSORIES

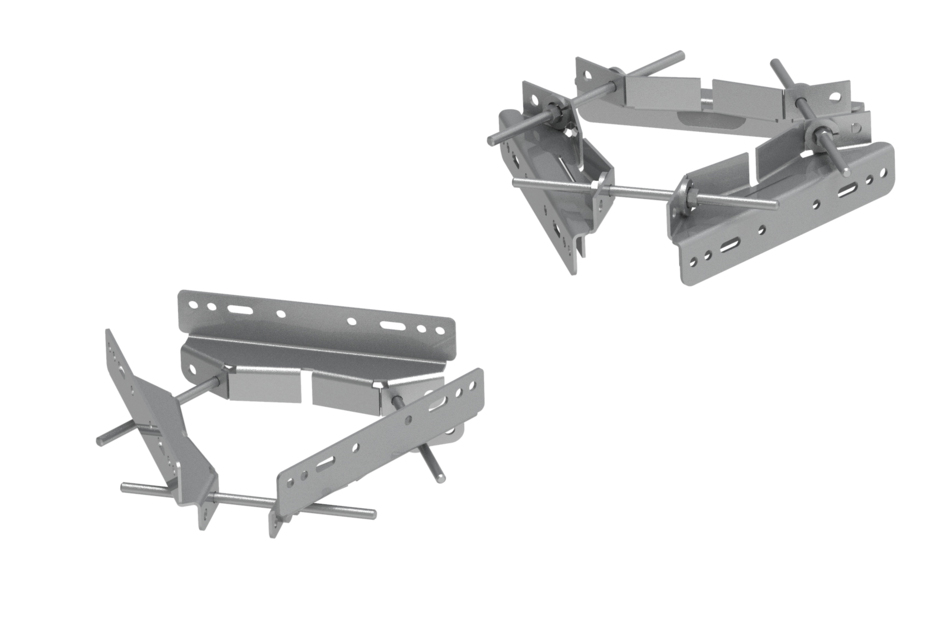

Universal Antenna Mount for Concealment, Tripod, and Flagpole applications. Mounts to Poles 4.5" to 13.0" OD
Specifications
Product Classification
| Product Type | Tripod mount component |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General Specifications
| Mounting | Round member |
Dimensions
| Height | 101.6 mm |
| Width | 330.2 mm |
| Length | 0.335 m |
| Mounting Diameter, maximum | 330.200 mm | 13 in |
| Mounting Diameter, minimum | 114.300 mm | 4.5 in |
| Stand-off Distance | 45.720 mm | 1.8 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Brackets | Threaded rod |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Product Type | Tripod mount component |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General Specifications
| Mounting | Round member |
Dimensions
| Height | 101.6 mm |
| Width | 330.2 mm |
| Length | 0.335 m |
| Mounting Diameter, maximum | 330.200 mm | 13 in |
| Mounting Diameter, minimum | 114.300 mm | 4.5 in |
| Stand-off Distance | 45.720 mm | 1.8 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Brackets | Threaded rod |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
