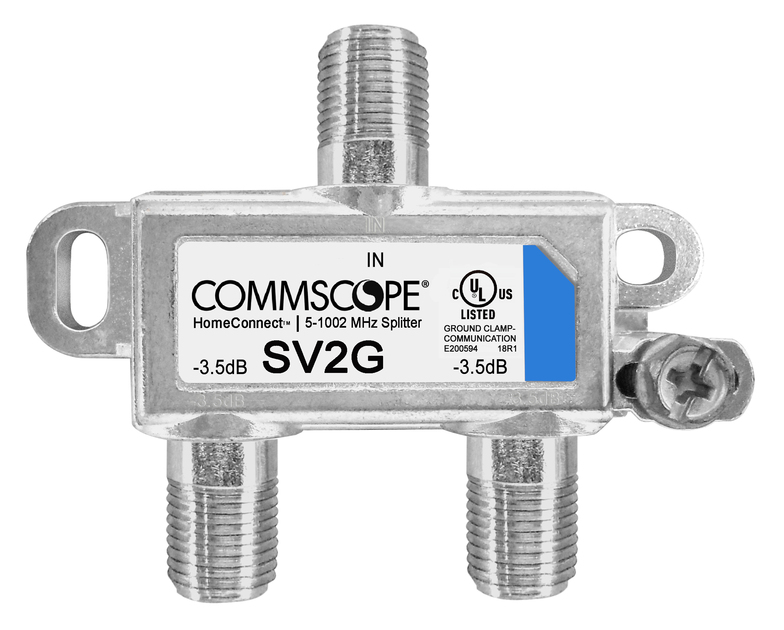

SV2G

HomeConnect® Two-way Splitter, 5–1002 MHz

Specifications

Finish making your selections or clear them to view relevant specifications.

View Download

Find a Partner

Support

Specifications

Product Classification

Product Type	Coaxial splitter
Product Brand	HomeConnect®

Insertion Loss at Frequency Band, typical	3.5 dB @ 5–550 MHz \| 4.0 dB @ 550–1002 MHz
Return Loss at Frequency Band, input, typical	22 dB @ 50–1002 MHz \| 25 dB @ 5–45 MHz
Return Loss at Frequency Band, output, typical	22 dB @ 50–1002 MHz \| 25 dB @ 5–45 MHz
Frequency Response	±0.3 dB
Impedance	75 ohm
Operating Frequency Band	5 – 1002 MHz
Power Passing	No
Shielding Effectiveness, minimum	120 dB
Spurious Signals/2nd Order Harmonics, before surge	<-60 dBc
Surge Capability Test Method	ANSI/SCTE 81 \| Category A3 (6 kV, 200 A, Ring wave)
Surge Capability Waveform	100 kHz ring wave waveform

Isolation at Frequency Band, tap to output, typical

30.0 dB @ 300–1002 MHz | 35.0 dB @ 50–300 MHz | 35.0 dB @ 5–15 MHz | 40.0 dB @ 15–45 MHz

Operating Temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Safety Standard	CE \| EN 60728-4 \| SCTE

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system

Product Type	Coaxial splitter
Product Brand	HomeConnect®

Insertion Loss at Frequency Band, typical	3.5 dB @ 5–550 MHz \| 4.0 dB @ 550–1002 MHz
Return Loss at Frequency Band, input, typical	22 dB @ 50–1002 MHz \| 25 dB @ 5–45 MHz
Return Loss at Frequency Band, output, typical	22 dB @ 50–1002 MHz \| 25 dB @ 5–45 MHz
Frequency Response	±0.3 dB
Impedance	75 ohm
Operating Frequency Band	5 – 1002 MHz
Power Passing	No
Shielding Effectiveness, minimum	120 dB
Spurious Signals/2nd Order Harmonics, before surge	<-60 dBc
Surge Capability Test Method	ANSI/SCTE 81 \| Category A3 (6 kV, 200 A, Ring wave)
Surge Capability Waveform	100 kHz ring wave waveform
