SVA10RPFS

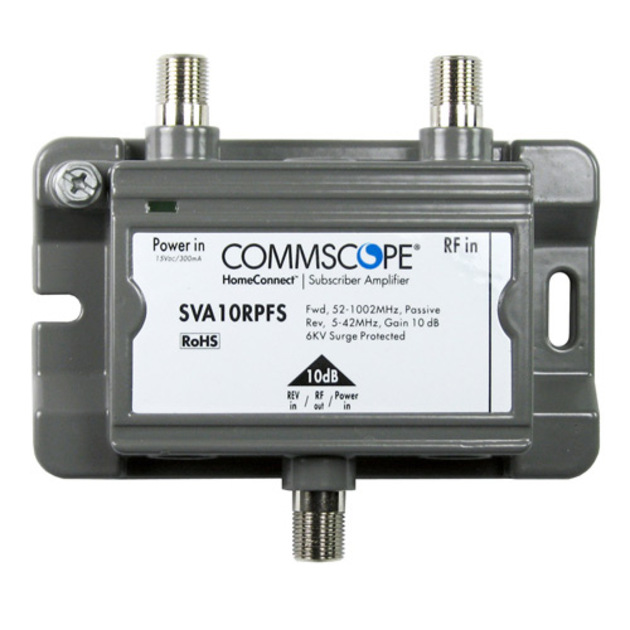

HomeConnect® Mini Subscriber Amplifier, 10 dB reverse, one port
Specifications
Product Classification
| Product Type | RF amplifier |
| Product Brand | HomeConnect® |
General Specifications
| Device Type | Reverse subscriber amplifier |
| Application | Indoor | Outdoor |
| Video Ports, quantity | 1 |
| Video Standard | NTSC |
Electrical Specifications
| Distortion Performance (DSO), minimum | 55 dBc |
| Distortion Performance (DTO), minimum | 55 dBc |
| Group Delay, channel 2–4, maximum | 20 ns |
| Group Delay, channel 5–6, maximum | 5 ns |
| Group Delay, reverse, maximum | 20 ns |
| Hum Modulation, minimum | -75 dB |
| Impedance | 75 ohm |
| Operating Current at Voltage | 300 mA @ 15 Vdc |
| Shielding Effectiveness, minimum | 100 dB |
| Surge Capability Test Method | ANSI/SCTE 81 | IEEE C62.41-A3 (6 kV, 200 A, Ring wave) on all ports | IEEE C62.41-B3 (6 kV, 3000 A, Combination wave) on input port |
| Surge Capability Waveform | 1.2/50 voltage and 8/20 current combination waveform | 100 kHz ring wave waveform |
Electrical Specifications, Isolation
| Isolation at Frequency Band, power port to RF output, minimum | 55 dB @ 5–1002 MHz |
Electrical Specifications, Rx (Uplink)
| Flatness | ±1.0 dB |
| Gain | 10 dB |
| Return Loss, minimum | 20 dB |
| Noise Figure, maximum | 7.5 dB |
| Operating Frequency Band | 5 – 42 MHz |
Electrical Specifications, Tx (Downlink)
| Flatness | ±0.5 dB |
| Operating Frequency Band | 53 – 1002 MHz |
| Insertion Loss | 1.5 dB |
| Return Loss, minimum | 20 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Safety Standard | SCTE |
Packaging and Weights
| Height, packed | 190.5 mm | 7.5 in |
| Width, packed | 228.6 mm | 9 in |
| Length, packed | 469.9 mm | 18.5 in |
| Carton Quantity | 20 |
| Included | Power adapter |
| Weight, gross | 7.711 kg | 17 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | RF amplifier |
| Product Brand | HomeConnect® |
General Specifications
| Device Type | Reverse subscriber amplifier |
| Application | Indoor | Outdoor |
| Video Ports, quantity | 1 |
| Video Standard | NTSC |
Electrical Specifications
| Distortion Performance (DSO), minimum | 55 dBc |
| Distortion Performance (DTO), minimum | 55 dBc |
| Group Delay, channel 2–4, maximum | 20 ns |
| Group Delay, channel 5–6, maximum | 5 ns |
| Group Delay, reverse, maximum | 20 ns |
| Hum Modulation, minimum | -75 dB |
| Impedance | 75 ohm |
| Operating Current at Voltage | 300 mA @ 15 Vdc |
| Shielding Effectiveness, minimum | 100 dB |
| Surge Capability Test Method | ANSI/SCTE 81 | IEEE C62.41-A3 (6 kV, 200 A, Ring wave) on all ports | IEEE C62.41-B3 (6 kV, 3000 A, Combination wave) on input port |
| Surge Capability Waveform | 1.2/50 voltage and 8/20 current combination waveform | 100 kHz ring wave waveform |
Electrical Specifications, Isolation
| Isolation at Frequency Band, power port to RF output, minimum | 55 dB @ 5–1002 MHz |
Electrical Specifications, Rx (Uplink)
| Flatness | ±1.0 dB |
| Gain | 10 dB |
| Return Loss, minimum | 20 dB |
| Noise Figure, maximum | 7.5 dB |
| Operating Frequency Band | 5 – 42 MHz |
Electrical Specifications, Tx (Downlink)
| Flatness | ±0.5 dB |
| Operating Frequency Band | 53 – 1002 MHz |
| Insertion Loss | 1.5 dB |
| Return Loss, minimum | 20 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Safety Standard | SCTE |
Packaging and Weights
| Height, packed | 190.5 mm | 7.5 in |
| Width, packed | 228.6 mm | 9 in |
| Length, packed | 469.9 mm | 18.5 in |
| Carton Quantity | 20 |
| Included | Power adapter |
| Weight, gross | 7.711 kg | 17 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
