4101403/10 | 2285V WTRL RG11 60 1000

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

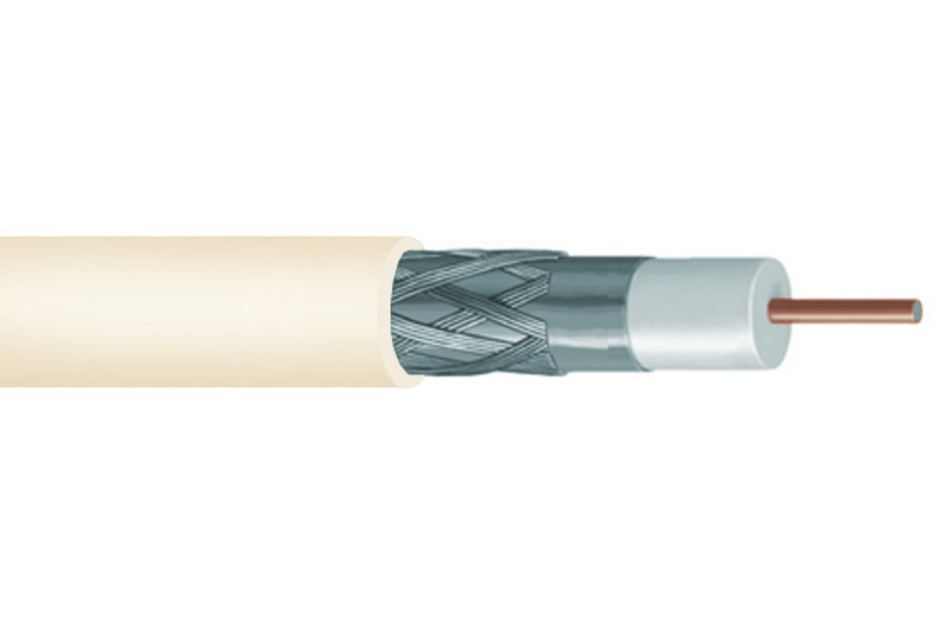

RG 11 Type 60% Braid Plenum Video Coaxial Cable, white jacket, 1000 ft (305 m) reel

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Coaxial video cable

General Specifications

Product Number 2285V
Cable Type Series 11
Center Conductor Type Solid
Construction Type Non-armored
Jacket Color White
Supported Application Video

Dimensions

Cable Length 304.8 m | 1000 ft
Diameter Over Center Conductor, specific 0.0641 in per 1 strand
Diameter Over Dielectric 7.061 mm | 0.278 in
Diameter Over Jacket, nominal 8.407 mm | 0.331 in
Diameter Over Jacket Tolerance ±0.008 in
Diameter Over Shield (Braid) 7.595 mm | 0.299 in
Diameter Over Shield (Tape) 7.214 mm | 0.284 in
Jacket Thickness 0.432 mm | 0.017 in
Jacket Thickness, minimum spot 0.305 mm | 0.012 in
Center Conductor Gauge 14 AWG
Shield (Braid) Gauge 36 AWG

Electrical Specifications

Capacitance 52.493 pF/m | 16 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±3 ohm
Conductor dc Resistance 36.089 ohms/km | 11 ohms/kft
Dielectric Strength, conductor to shield 4000 Vdc
Jacket Spark Test Voltage 5000 Vac
Nominal Velocity of Propagation (NVP) 86 %
Shield dc Resistance 11.483 ohms/km | 3.5 ohms/kft
Structural Return Loss 15 dB @ 1000–3000 MHz | 20 dB @ 5–1000 MHz
Structural Return Loss Test Method 100% Swept Tested

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
1.0 MHz 0.490 0.150
10.0 MHz 1.480 0.450
50.0 MHz 2.950 0.900
100.0 MHz 4.200 1.280
200.0 MHz 6.070 1.850
400.0 MHz 9.020 2.750
700.0 MHz 12.860 3.920
900.0 MHz 15.480 4.720
1000.0 MHz 16.530 5.040
1450.0 MHz 21.880 6.670
1800.0 MHz 25.290 7.710
2200.0 MHz 27.880 8.500
3000.0 MHz 32.410 9.880

Material Specifications

Center Conductor Material Copper-clad steel wire
Dielectric Material Foam FEP
Jacket Material PVC
Shield (Braid) Coverage 60 %
Shield (Braid) Material Tinned copper
Shield (Tape) Material Aluminum/Poly

Mechanical Specifications

Minimum Bend Radius, loaded, times 20 times
Minimum Bend Radius, unloaded, times 10 times

Environmental Specifications

Environmental Space Plenum
Temperature Rating, UL 75 °C | 167 °F
Flame Test Method CMP
Safety Standard ETL | cETL

Packaging and Weights

Cable weight 83.337 kg/km | 56 lb/kft
Packaging Type Reel

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
