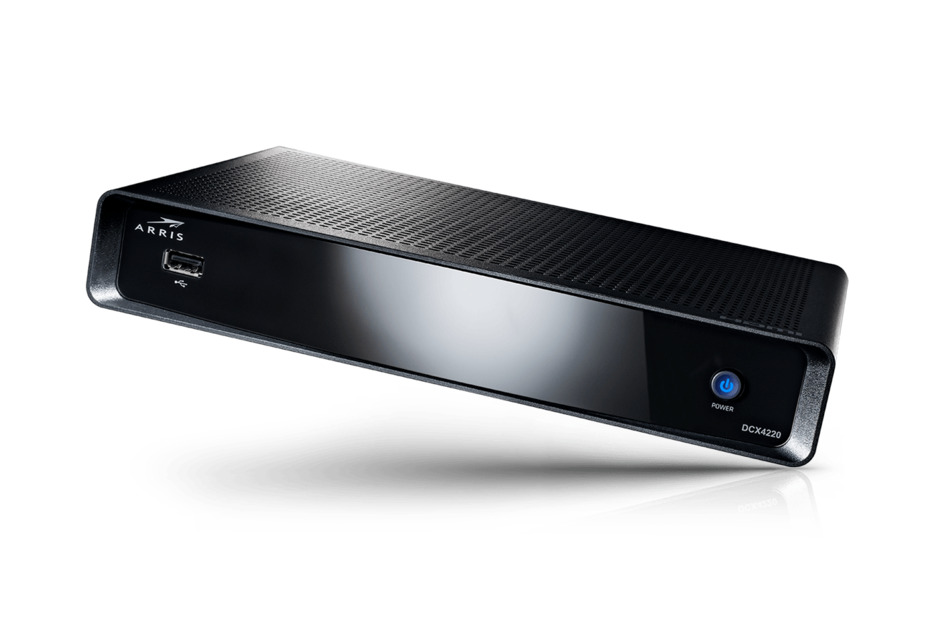

DCX4220 | DCX4220 Cable Set-Top

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

ATSC, AVC, HD Cable Set-Top with DOCSIS® 3.0 modem

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

The DCX4220 fully supports the growing consumer demand for high-definition programming and high-bandwidth advanced applications. The DCX4220 supports customers traditional application, and can be upgraded to ARRIS’s KreaTV middleware, which provides support for DOCSIS 3.0 16x4 modem to grow your IP service in the future.

DOCSIS/Digital Video Tuner to support multiple video tuners
Large memory footprint allows for future application expansion
Optional SD card can be used for trick play services or as additional storage
Rovi support along with Minerva 10 application supported with KreaTV

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Cable video device

General Specifications

Front Panel Interfaces	Backlit power button \| IR remote control sensor (RF4CE supported in KreaTV) \| USB 2.0 Type A
Graphics	HD Outputs 16:9 up to 1920x1080 \| SD Outputs 4:3 up to 720x480
Memory	1 GB DRAM \| 512 MB Flash
Processor	3000 DMIPS
Rear Panel Interfaces	3.5 mm serial port/External IR input \| Baseband composite video output \| HDMI \| L/R audio output – variable \| Optical SPDIF \| RJ45 \| USB 2.0 Type A 500 mA \| ‘F’ type connector
Software Compatibility	ARRIS KreaTV \| ARRIS Thin Client
Tuner	Cable
Video Formats	HD
Video Resolution	1080i \| 1080p24 \| 1080p30 \| 1080p60 (HDMI only) \| 480i/p \| 576i/p \| 720p

Dimensions

Height	40.64 mm \| 1.6 in
Width	241.3 mm \| 9.5 in
Length	165.1 mm \| 6.5 in

Electrical Specifications

Power Consumption

36 W

Environmental Specifications

Operating Temperature	+15 °C to +40 °C (+50 °F to +104 °F)
Relative Humidity	5%–90%

Packaging and Weights

Weight, net

0.726 kg | 1.6 lb
