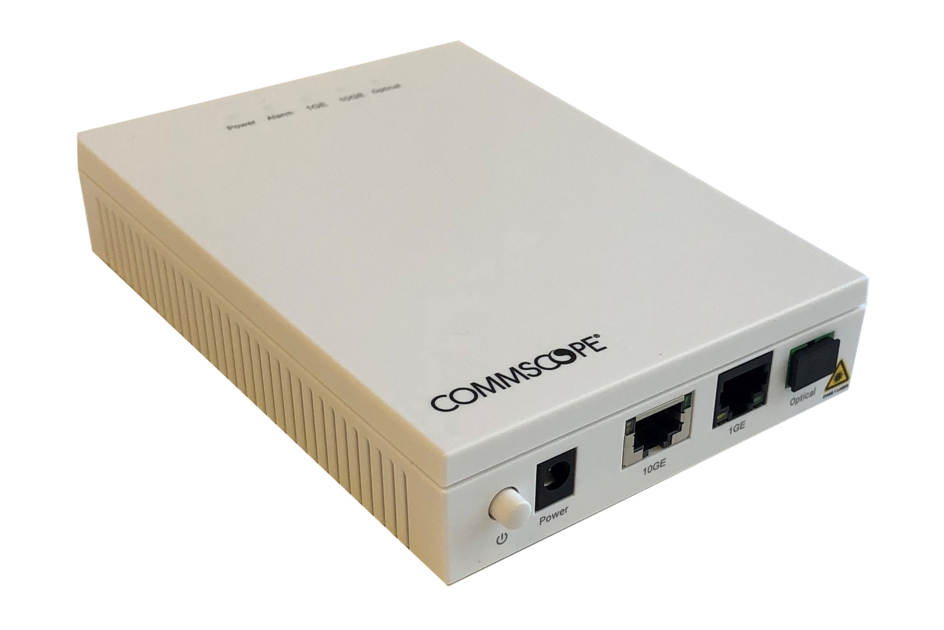

CommScope FLX™ ONU, 1x1G, 1x10G LAN Ports, SC/APC, for indoor commercial and residential customer premise applications

Contact Us for a Quote
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits

PRELIMINARY SPECIFICATION

The CommScope FLX™ XGS-PON ONU Model SF2101XG is a G.9807.1 compliant, data only, bridge mode ONU, for indoor commercial and residential customer premise applications. The ONU provides operators with an off-the shelf plug and play high-speed service access and distribution device for deployment with CommScope’s XGS-PON Optical Line Terminal (OLT) platforms. With OMCI provisioning support, the ONU is designed to support multi-vendor interoperability with other XGS-PON OLT vendor systems. The ONU requires minimal setup and configuration to enable operation andprovides support for 10/10 Gb/s symmetric XGS-PON modes of operation. For connection to various subscriber-side premises equipment, the unit supports one 10GE auto-sensing RJ45 port and one 1GE auto-sensing RJ-45 port, at 100/1000BaseT. The ONU supports bridged mode operation,with standards and protocol support to enable numerous commercial services and premise demarcation applications.

Key features of the SF2101XG :
  • G.9807.1 compliant data only,bridge ONU for indoor commercial and residential services applications
  • 10Gb/s Downstream and 10Gb/s Upstream XGS-PON interface
  • Data services and service flows configurable with OMCI for OLT interoperability and PON Link Management
  • Supports Triple Play services,VOIP, video, and high-speed internet
  • IPv6 Support
  • Advanced Quality of Service features ensure optimal data and VoIP communications
  • One 10GE subscriber facing UNILAN port
  • One 1GE subscriber facing UNILAN port
  • Secure data transport with 128-bitAES encryption
  • SC/APC (Green) Optical Interface
Ordering information: The Orderable Part Numbers are in Bold
ONU SF2101XG is offered in four kit configurations with regional power plug options. (US, UK, EU, AU)
  • 620680-001-00, includes: SF2101XG (619566-002-00), and US style plug (United States)
  • 620680-002-00, includes: SF2101XG (619566-002-00), and UK style plug (United Kingdom)
  • 620680-003-00, includes: SF2101XG (619566-002-00), and EU style plug (European Union)
  • 620680-004-00, includes: SF2101XG (619566-002-00),andAU style plug (Australia)

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type PON ONU unit
Product Brand CommScope FLX™

General Specifications

Gen: LED Indicator, PWR Dark = Power Off | Green = Power On
LED Indicator, PON Dark = Not registered to OLT | Green = Registered to OLT
LED Indicator, PON Alarm Red = LOS (Loss of Signal)
Gen: LED Indicator, LAN Dark = Link is down | Flickering Green: Active Data Passing | Solid Green: Link established
Link Security AES-128 downstream
Provisioning and Monitoring G.988 ONU management and control interface
Transmission Standards 802.1D | 802.1Q | 802.1ad | 802.3ad | ITU-T G.987

Dimensions

Height 30 mm | 1.181 in
Width 110 mm | 4.331 in
Length 150 mm | 5.906 in

Electrical Specifications

Electrical Interfaces 10G Port supports multi-rate operation 1G, 2.5G, 5G, and 10G | 1x10G Interface, 10GBase-T interface with RJ45 connector | 1x1G Interface, 10/100/1000Base-T interface with RJ45 connector
Power Consumption, typical 9.5 W
Power Supply +12V feed via external AC/DC adapter

Optical Specifications

Optical Port Interface SC-APC
Optical Power Downstream: 1577nm Rx wavelength (+/- 5 nm) | Input power: -10 dBm to -28.5 dBm @ 10-3 | Output power: +4 dBm to +9 dBm | Upstream: 1270nm Tx wavelength (+/- 10nm)

Environmental Specifications

Operating Temperature -5 °C to +45 °C (+23 °F to +113 °F)
Relative Humidity 20%–80%, non-condensing
Standards Compliance CE | FCC/ETL

Packaging and Weights

Weight, net 0.270 kg | 0.5952 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type PON ONU unit
Product Brand CommScope FLX™

General Specifications

Gen: LED Indicator, PWR Dark = Power Off | Green = Power On
LED Indicator, PON Dark = Not registered to OLT | Green = Registered to OLT
LED Indicator, PON Alarm Red = LOS (Loss of Signal)
Gen: LED Indicator, LAN Dark = Link is down | Flickering Green: Active Data Passing | Solid Green: Link established
Link Security AES-128 downstream
Provisioning and Monitoring G.988 ONU management and control interface
Transmission Standards 802.1D | 802.1Q | 802.1ad | 802.3ad | ITU-T G.987

Dimensions

Height 30 mm | 1.181 in
Width 110 mm | 4.331 in
Length 150 mm | 5.906 in

Electrical Specifications

Electrical Interfaces 10G Port supports multi-rate operation 1G, 2.5G, 5G, and 10G | 1x10G Interface, 10GBase-T interface with RJ45 connector | 1x1G Interface, 10/100/1000Base-T interface with RJ45 connector
Power Consumption, typical 9.5 W
Power Supply +12V feed via external AC/DC adapter

Optical Specifications

Optical Port Interface SC-APC
Optical Power Downstream: 1577nm Rx wavelength (+/- 5 nm) | Input power: -10 dBm to -28.5 dBm @ 10-3 | Output power: +4 dBm to +9 dBm | Upstream: 1270nm Tx wavelength (+/- 10nm)

Environmental Specifications

Operating Temperature -5 °C to +45 °C (+23 °F to +113 °F)
Relative Humidity 20%–80%, non-condensing
Standards Compliance CE | FCC/ETL

Packaging and Weights

Weight, net 0.270 kg | 0.5952 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
