This product was discontinued on: March 30, 2023

For other alternatives, please contact us for more information.

1 Replacement products available
  • NHHSS-65C-R2BT4
    10-port sector antenna, 2x 698–896, 4x 1695–2200 and 4x 3100-4200 MHz, 65° HPBW, 2x RETs and 2x SBTs. Both high bands share the same electrical tilt.

NHHSS-65C-R2BT6

10-port sector antenna, 2x 698–896, 4x 1695–2200 and 4x 3100-4200 MHz, 65° HPBW, 2x RETs and 2x SBTs. Both high bands share the same electrical tilt.

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Perfect antenna to add 3.5GHz CBRS to macro sites
  • Low band and mid band performance mirrors the performance of existing NHH hex port antennas
  • Interleaved dipole technology providing for attractive, low wind load mechanical package
  • Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
  • One LB RET and one HB RET. Both high bands are controlled by one RET to ensure same tilt level for 4x MIMO

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 10

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 4x 8 pin connector as per IEC 60130-9 Daisy chain in: Male / Daisy chain out: Female Pin3: RS485A(AISG_B), Pin5: RS485B(AISG_A), Pin6: DC 10~30V, Pin7: DC_ Return
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 3
Internal RET Low band (1) | Mid band (1)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 301 mm | 11.850 in
Depth 181 mm | 7.126 in
Length 2438 mm | 95.984 in
Net Weight, without mounting kit 28.1 kg | 61.950 lb

Array Layout

Click on image to enlarge.

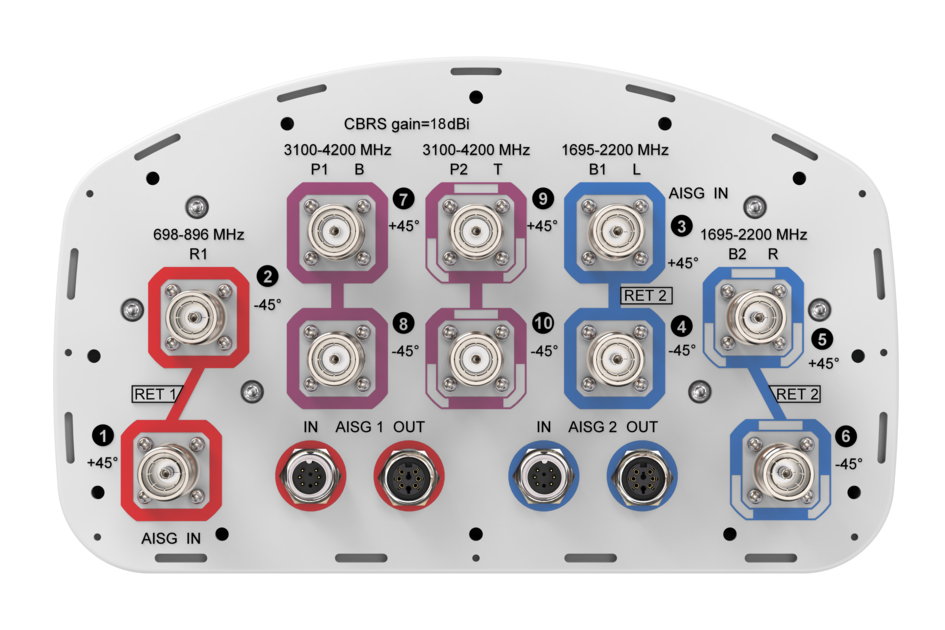

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2200 MHz | 3100 – 4200 MHz
Polarization ±45°
Total Input Power, maximum 1,000 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3100–3550 3550–3700 3700–4200
Gain, dBi 15.8 16.0 17.5 17.8 18.0 17.1 17.5 17.4
Beamwidth, Horizontal, degrees 64 62 67 62 63 54 63 62
Beamwidth, Vertical, degrees 8.9 7.9 5.6 5.2 5 5.8 5.2 4.9
Beam Tilt, degrees 0–11 0–11 0–7 0–7 0–7 6 6 6
USLS (First Lobe), dB 19 19 19 21 23 15 20 20
Front-to-Back Ratio at 180°, dB 28 31 32 31 28 30 34 32
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145 -145 -145
Input Power per Port at 50°C, maximum, watts 300 300 300 300 300 100 100 100

Mechanical Specifications

Wind Loading @ Velocity, lateral 330.0 N @ 150 km/h (74.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 757.0 N @ 150 km/h (170.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 398.0 N @ 150 km/h (89.5 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 441 mm | 17.362 in
Depth, packed 337 mm | 13.268 in
Length, packed 2583 mm | 101.693 in
Weight, gross 40.8 kg | 89.948 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
